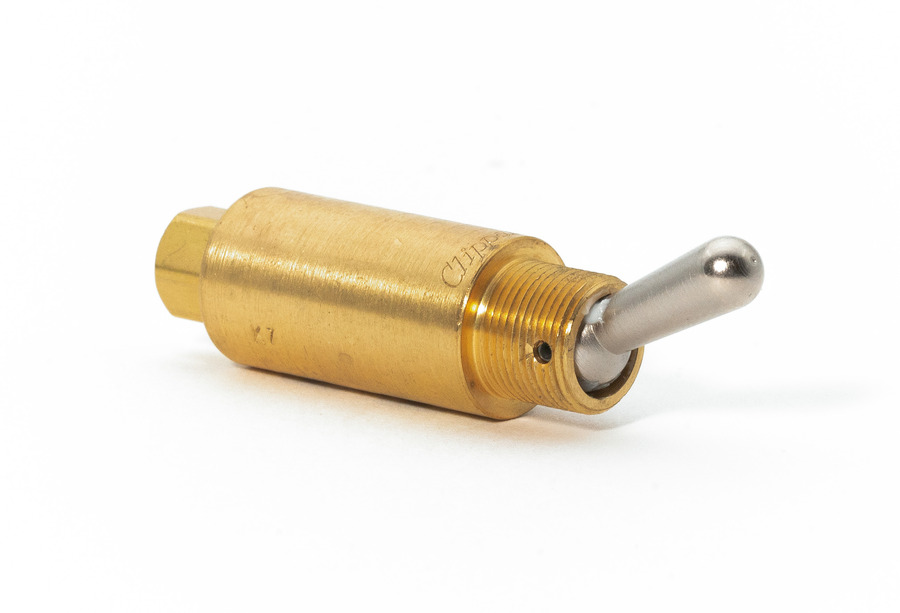

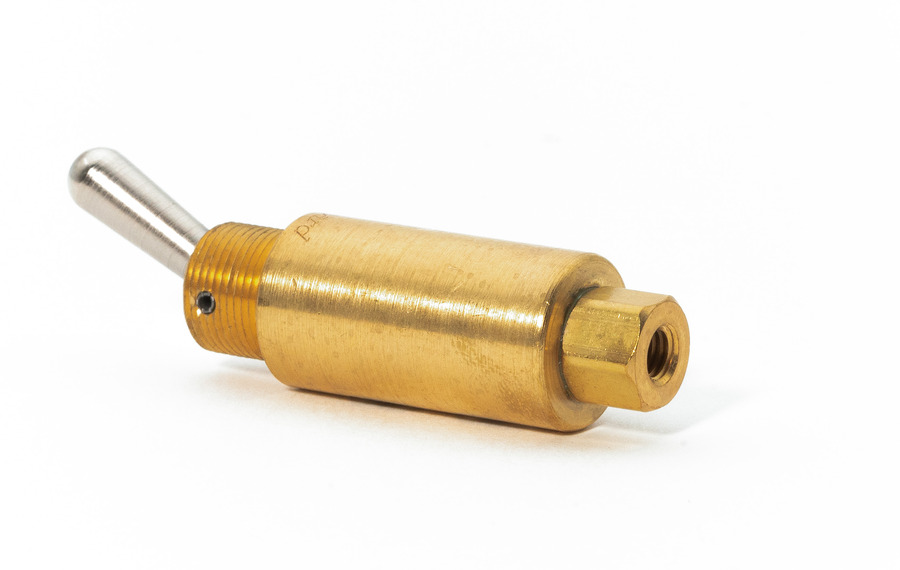

M-MTV-2

These #10-32 ported 2-Way, 3-Way and 4-Way valves are manually-actuated with a toggle. The toggles are NP steel and have a detent action. The MTV-5 has threaded exhaust and can be connected in a dual inlet pressure configuration.

Unit

Function

Port, Inlet / Port, Outlet

Material, Toggle

Estimated to ship within 5 business days

Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.

Poppet & spool styles

For high temperature applications (up to 400°F), or those that require special seals for chemical compatibility, Clippard offers optional FKM seals

Flow	113 l/min @ 3.4 Bar; 205 l/min @ 7 bar
Function	2-Way Normally-Closed
Included Item(s)	Nut & Lockwashers
Material, Body	Brass
Material, Seals	Nitrile Std. FKM or Krytox optional
Material, Spring	Stainless Steel Stem & Spring
Material, Toggle	Nickel-Plated Steel
Medium	Air, Water or Oil

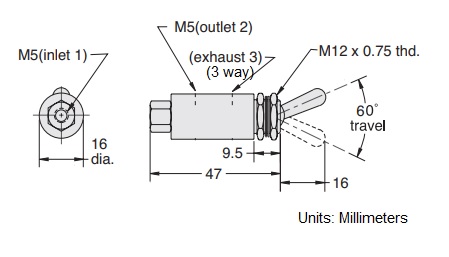

Mount	M12 x 0.75 thread.
Operating Temperature Range	32 to 230°F (0 to 110°C)
Port, Inlet / Port, Outlet	M5 / M5
Product Line Brochure	Mechanical Valves
Style	Toggle
Unit	Metric
Weight (lbs.)	0.1700
