M-MJTV-5F

More Views

M-MJTV-5F

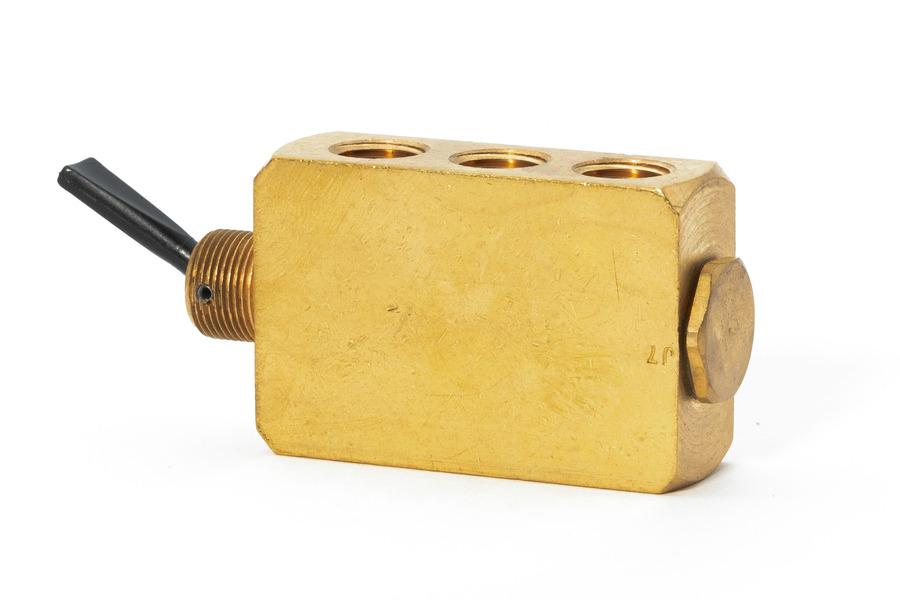

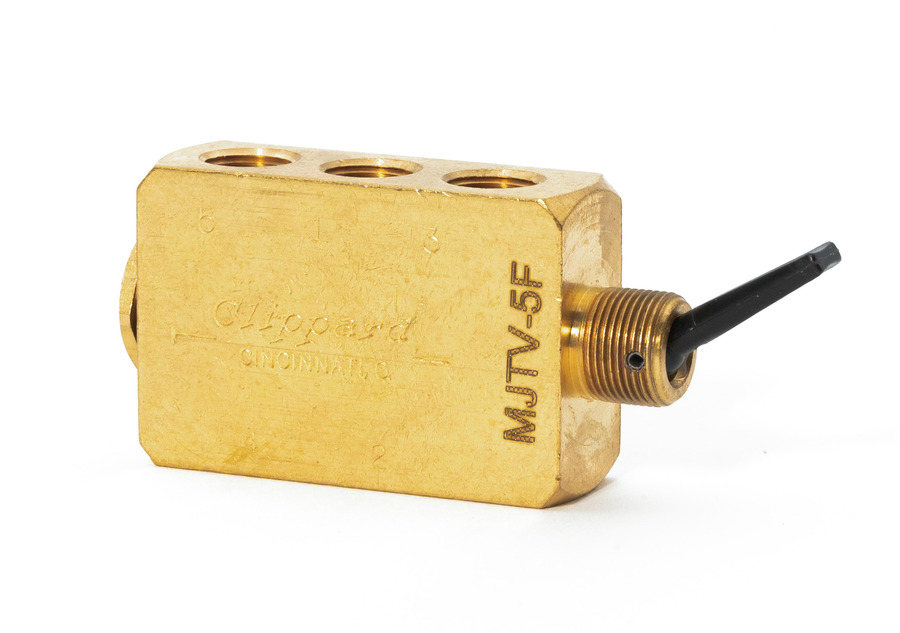

These #10-32 ported 2-Way, 3-Way and 4-Way valves are manually-actuated with a toggle. The toggles are NP steel and have a detent action. The MTV-5 has threaded exhaust and can be connected in a dual inlet pressure configuration.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Poppet & spool styles
  • For high temperature applications (up to 400°F), or those that require special seals for chemical compatibility, Clippard offers optional FKM seals

    • Flow170 l/min @ 3.4 bar; 280 l/min @ 7 bar
    Function4-Way Fully-Ported
    Included Item(s)Nut & Lockwashers
    Material, BodyBrass
    Material, SealsNitrile Std. FKM or Krytox optional
    Material, SpringStainless Steel Stem & Spring
    Material, TogglePlastic
    Max PSI10.3 bar
    MediumAir, Water or Oil
    MountM12 x 0.75 thread.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Port, Inlet / Port, OutletG1/8 / G/18
    Product Line BrochureMechanical Valves
    StyleToggle
    UnitMetric
    Weight (lbs.)0.4200
