M-MCV-1BB

More Views

M-MCV-1BB

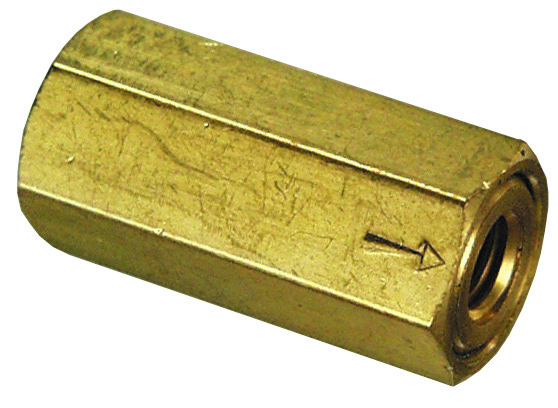

Check valves permit flow in one direction only. The MCV series is available with #10-32 ports and are construced of bright-dipped brass bodies that provide in-line mounting.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Bright brass bodies
  • Direct or In-Line mount
  • Not intended for pressure relief
  • Nitrile seals and stainless steel spring are standard

  • Flow6.5 l/min @ 50 psig; 325 l/min @ 100 psig
    Input Pressure300 psig (21 bar) max.
    Length.812
    Material, BodyBrass
    Material, SealsNitrile
    Material, SpringStainless Steel
    MediumAir
    MountDirect or In-Line
    NoteNot intended for pressure relief. Arrow on valve indicates direction of flow.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Ports (Inlet - Outlet)#10-32 (Female - Female)
    Pressure to OpenCracks @ approx. 1/2 psig (0.03 bar)
    Product Line BrochureMechanical Valves
    UnitMetric
    Weight (lbs.)0.0300
    Get CAD files:
