M-GV-2

More Views

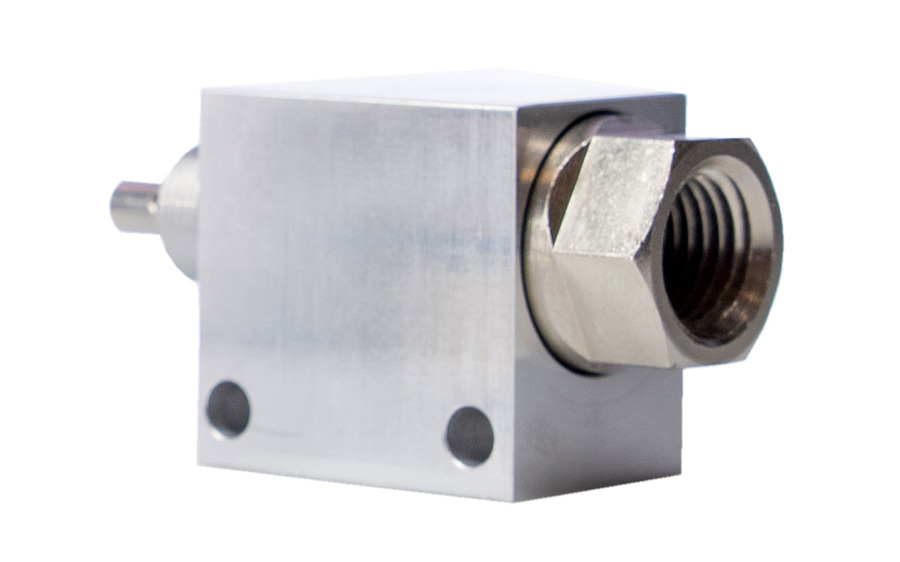

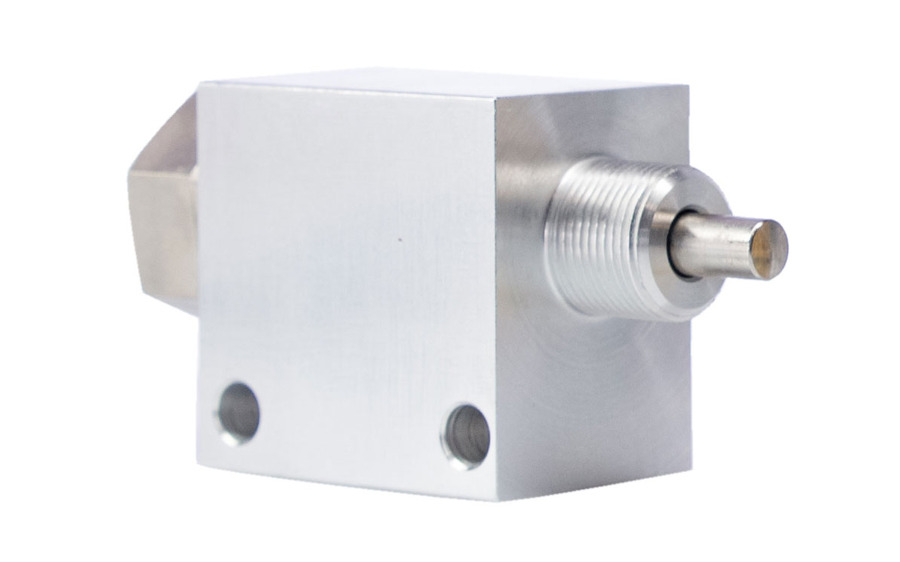

M-GV-2

The GV series valves offer the same characteristics of its original line with flow 10 times more than the MAV series and 2.5 times the flow of the MJV series. These 2-Way and 3-Way valves are offered in 1/4” NPT and G1/4 along with a cartridge mounted version. With Clippard’s versatile 15/32-32 nose thread, a large variety of buttons and valve actuators can be used with the GV stem operated valves.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Will accept a variety of manual, air pilot, electrical or mechanical actuators
  • Small, compact size, lightweight
  • Design flexibility and fast response
  • Electroless nickel plated brass and anodized aluminum construction for long life and corrosion resistance
  • Stainless steel stems and springs for corrosion resistance

    • 2D File2D File
    Flow Rate1,070 l/min @ 50 psig (3.5 bar); 1,900 l/min @ 100 psig (7 bar)
    Force9 lb. nominal @ 100 psig (4 kg @ 7 bar)
    Function2-Way Normally-Closed
    Material, SealsNitrile Std., FKM Optional
    Material, StemStainless Steel
    Medium2-Way: Air, Water or Oil; 3-Way: Air
    MountIn-Line
    MountingInserts into a 0.687" bore
    Operating Pressure150 psig max.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Port, InletG1/4 Female
    Port, OutletG1/4 Female
    Product Line BrochureMechanical Valves
    Stem Travel1/8" (3.2 mm)
    Technical Data SheetData Sheet
    UnitMetric
    Weight (lbs.)0.2000
    Get CAD files:

    Notes

    Stem Travel: 1/8"
