JPC-3FPF

More Views

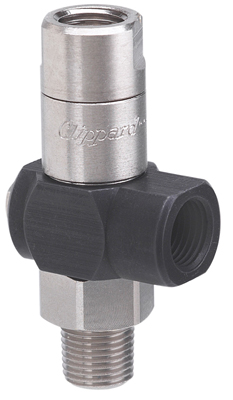

JPC-3FPF

Pilot-operated check valves work as standard check valves but can be opened with an air pilot signal to permit free flow in the normally "checked" direction. This provides the user with a reliable method to check flow in one direction with the ability to remotely signal a free flow through the valve. The JPC Series all-in-one pilot-operated check valves are easy to connect and ideal for any circuit that might benefit from this useful function.
Estimated to ship within 7 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • High flow valve means low pressure drop
  • Uses Clippard's superior poppet design
  • #10-32 auxiliary port allows ease of plumbing
  • Side port rotates for ease of positioning
  • Pressure range up to 300 psig
  • Direct mount

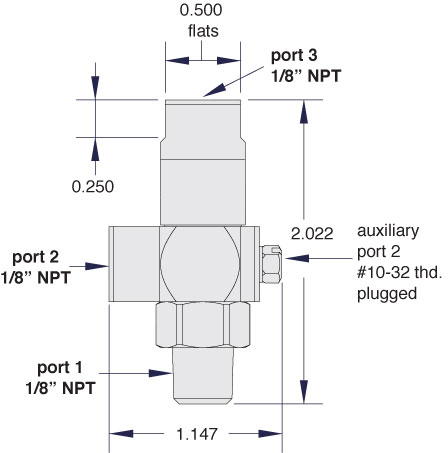

    • Length2.022
    Material, BodyENP Brass, Anodized Aluminum, Stainless Steel
    Material, SealsNitrile
    MediumAir, Water or Oil
    MountDirect
    Operating PressureUp to 300 psig (21 bar)
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Port Sizes (P1, P2, P3)1/8" NPT, 1/8" NPT, 1/8" NPT
    Product Line BrochureMechanical Valves
    Weight (lbs.)0.0800
