FTV-3FP

More Views

FTV-3FP

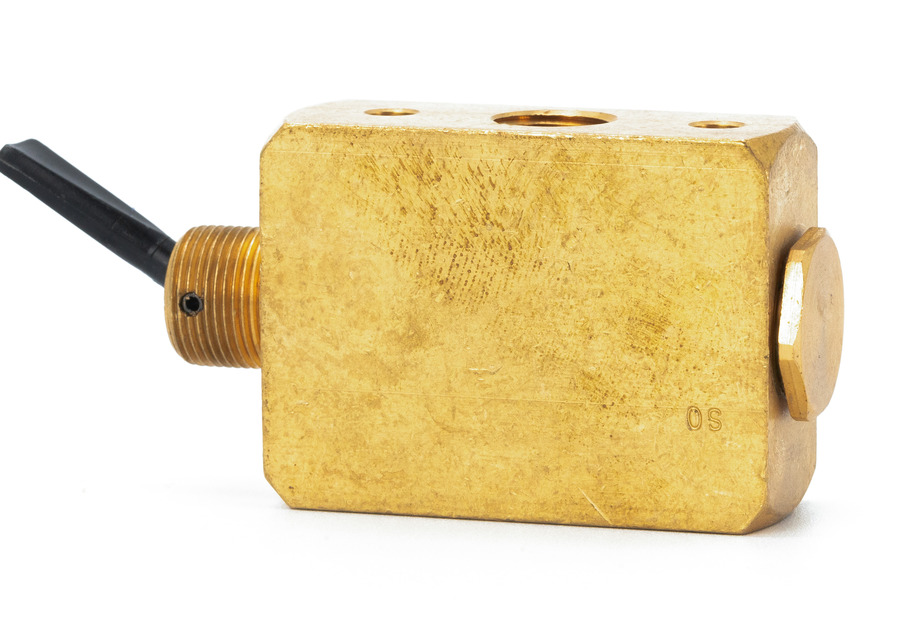

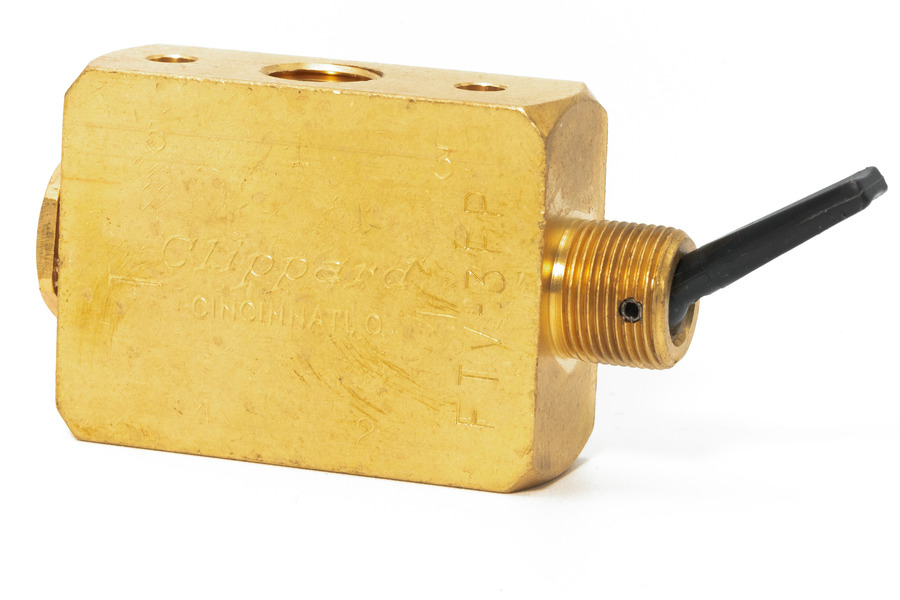

3-Way, 2 Position FTV valves have a supply, outlet and exhaust port. When the toggle is in the "on" position air flows from the inlet to the outlet and the exhaust port is blocked. Moving the toggle to the "off" position closes the inlet and opens the outlet to an exhaust port which vents the outlet to atmosphere. 3-Way toggle valves may have a poppet or spool and by movement of the toggle may either be 2-position or have a momentary actuation.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Compact design, lightweight
  • Will accept a variety of manual, air pilot, electrical or mechanical actuators

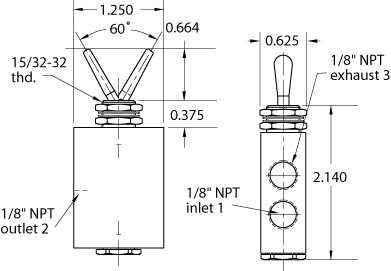

  • #10-32 & 1/8" NPT
  • 15/32-32 thread for panel mounting

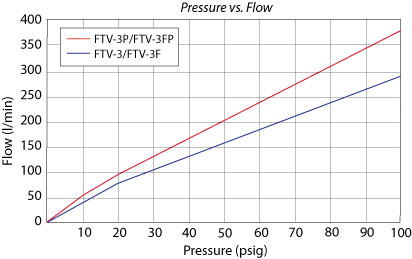

    • Air Flow295 l/min @ 100 psig
    Force to Rotate Toggle3.0 lbs @ 0.0 psig Inlet Pressure
    Included Item(s)Nuts & Lockwashers
    Material, BodyBrass with Stainless Steel Stem & Spring
    Material, SealsNitrile Std., FKM Optional
    Material, TogglePlastic
    Max PSI150 psig
    MediumAir
    Mount#15/32-32 Thread
    NotesENP Plating Available. Add "-ENP" Suffix
    Operating Temperature Range32 to 230°F
    Ports1/8" NPT
    Product Line BrochureMechanical Valves
    UnitImperial
    Weight (lbs.)0.2800
    Get CAD files:

    Notes

    ENP Plating Available. Add "-ENP" Suffix
