FBV-3DPFH

More Views

FBV-3DPFH

Fill and Bleed Valves may be used to pressurize or "fill" a chamber or bladder by depressing the toggle in one direction and then de-pressurize or "bleed" that same chamber or bladder by depressing the toggle in the other direction. Toggling back and forth between the inlet and exhaust provides a fine adjustment of the required pressure in the chamber or bladder.
Estimated to ship within 10 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Adjustable or non-adjustable flow models available.
  • Adjustable models have built-in needle valves to control flow.
  • Non-adjustable models may be used as pressure selectors.
  • Compact design, simple to install in circuit.
  • Rugged Delrin® toggle for easy operation.
  • Mounting threads for panel or two holes for surface mounting.
  • Bright dipped brass construction for long life and corrosion-resistance.
  • Stainless steel springs, Delrin® toggle and spools—non-corrosive.
  • Nitrile seals; Viton® option available.

    • ActuationDetented/Detented

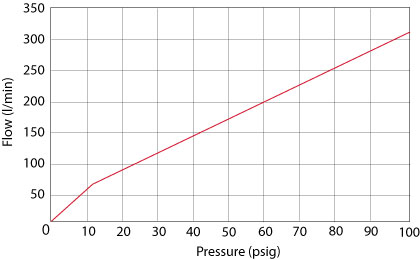

    Air Flow125 l/min @ 50 psig; 210 l/min @ 100 psig
    Data SheetData Sheet
    Force for Full Stem Travel8 oz. Nominal
    Included Item(s)Nut & Lockwashers
    Material, BodyBrass Body, Stainless Steel Stem & Spring
    Material, SealsNitrile
    Material, ToggleNickel Plated Brass
    MediumAir

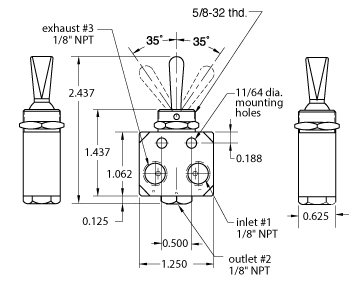

    Mount#5/8-32 Thread. Two 0.171" mounting holes in body
    Operating Pressure120 psig max. (8.3 bar)
    Ports1/8" NPT
    Product Line BrochureMechanical Valves
    Weight (lbs.)0.2100
