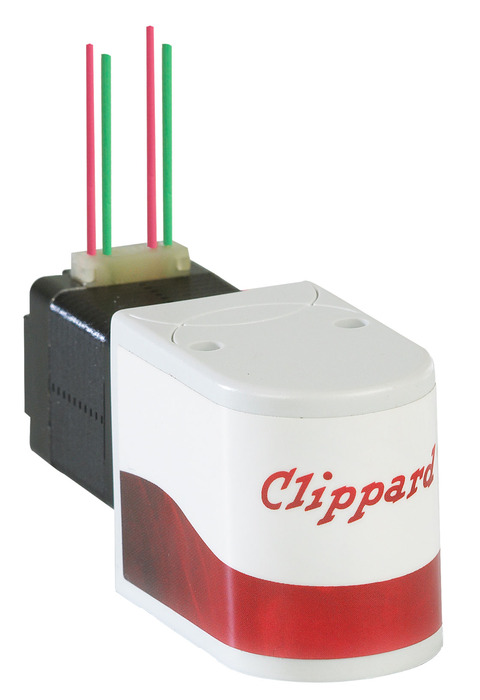

2D File | 2D File |
---|---|
Accessories | #10-32 Manifold: EUM-01, M5x0.8 Manifold: M-EUM-01, Bipolar Chopper Driver: SCPVD-1, Zero Dead Volume Fitting: ZDVF-18 |
Current/Phase | 0.49 Amps per Phase |
Cycle Life | Typically >1 million |
Data Sheet | Valve Data Sheet, Driver Data Sheet |
Driver | Bipolar Chopper Drive required |

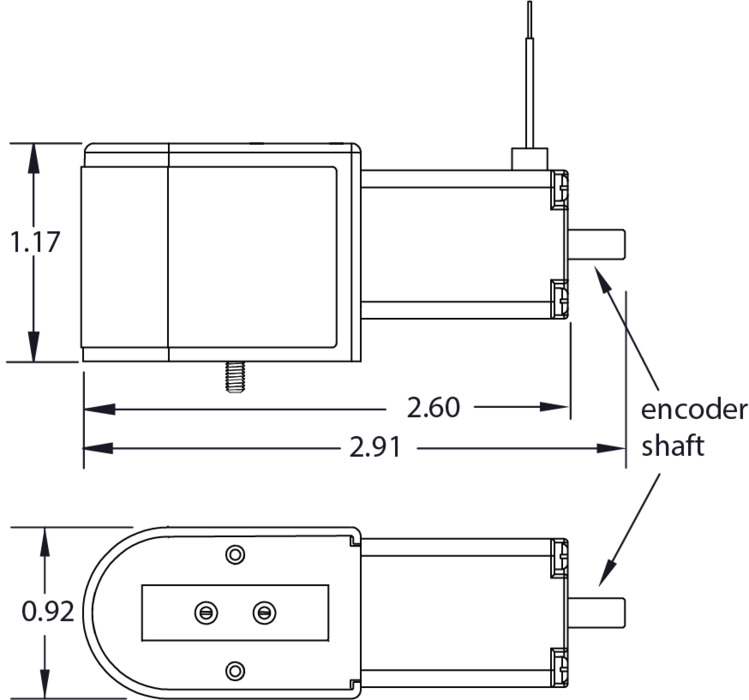

Length | 2.91 |
Linearity | <4% of Full Scale |
Material, Body | Ceramic |
Material, Seals | FKM |
Material, Wetted | Ceramic (others depending on porting option) |
Max PSI | 30 psig (2 bar) |
Max. Flow | Air: 0 to 8.0 l/min -0+10% (0.28 scfm) @ 30 psig; Water: 0 to 210 ml/min -0/+10% (0.0074) scfm) @ 30 psig |
Medium | Liquids & Gases |
Mount | Manifold |
Operating Instructions | Operating Instructions |
Operating Pressure | Vacuum to 30 psig (2,1 bar) |
Operating Temperature Range | 32 to 180°F |
Position Resolution | 0.00006" per step |
Power Consumption | 2.5 watts nom. |
Product Line Brochure | Isolation Valves, Proportional Valves |
Proof Pressure (Overpressure) | 50 psig (3,4 bar) |
Repeatability | <0.5% of Full Travel |
Response Time | <2 ms reaction time |
Seals | FKM |
Supply Voltage to Motor Driver | 20 VDC @ 30 psig (2,1 bar) |
Wattage | 2.5 watts nominal only during adjustment. Zero power consumption to maintain position. |
