E2L15E-4W012

More Views

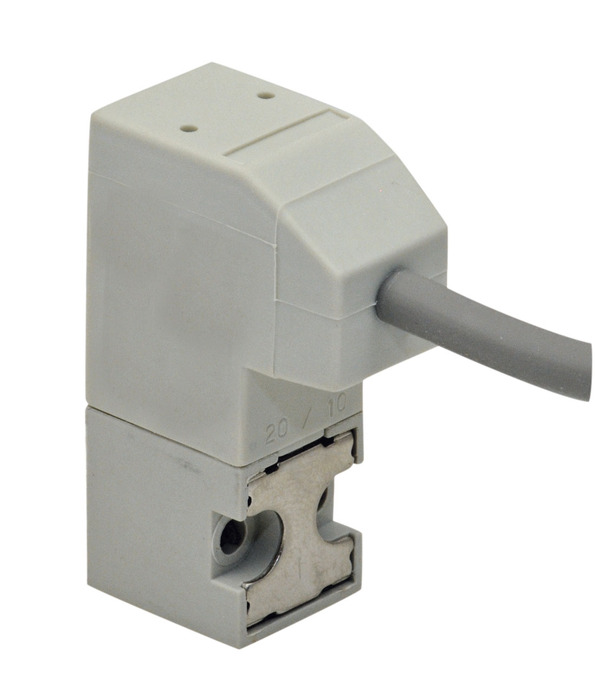

E2L15E-4W012

Offered in both Normally-Open or Normally-Closed models, these 2-way and 3-way valves are perfect for small areas where compact electronically-controlled pneumatics are needed.

This series has a high strength, engineered light-weight glass filled nylon body, along with stainless steel, copper and Buna-N, making it suitable for a broad range of applications. With exceptional life and reliability this is the perfect sub-miniature valve for tomorrow's needs in a wide variety of industries.

Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Bulk pricing.
Must be purchased in quantities greater than 100
Contact your local Clippard Distributor for volume discounts.

  • 2-Way or 3-Way operation
  • Detachable coil and body
  • Variety of circuit features & manifold options
  • RoHS compliant
  • Multiple connectors
  • Available LED for confirmation of operation
  • Highly visible manual override provides valve actuation without power
  • High durability and corrosion-resistant glass filled nylon housing
  • One piece gasket for manifold mount
  • Encapsulated low wattage coils

    Standard Series Direct operating valves well-suited for single- or multiple-valve mounting in small spaces

    Latching Series A short pulse of current shifts this valve which "latches"indefinitely; another pulse returns the valve.

    High Flow 2-Way Series Specialty series for high flow applications.

    • 2D DrawingsValves, Plastic Manifolds, ENP Brass Manifolds
    Connection24 AWG Wire Leads, 11.8"
    Connector Wire3-Wire Molded Cord, 24 AWG, 300 mm length, 4.5 mm external jacket; tinned copper wires; silicone jacket and conductor insulation.
    ConnectorsConnectors
    DocumentationCE, RoHS, REACH
    Function2-Way Latching
    Length1.08
    ManifoldsPlastic Barb, Aluminum
    MaterialsStainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available

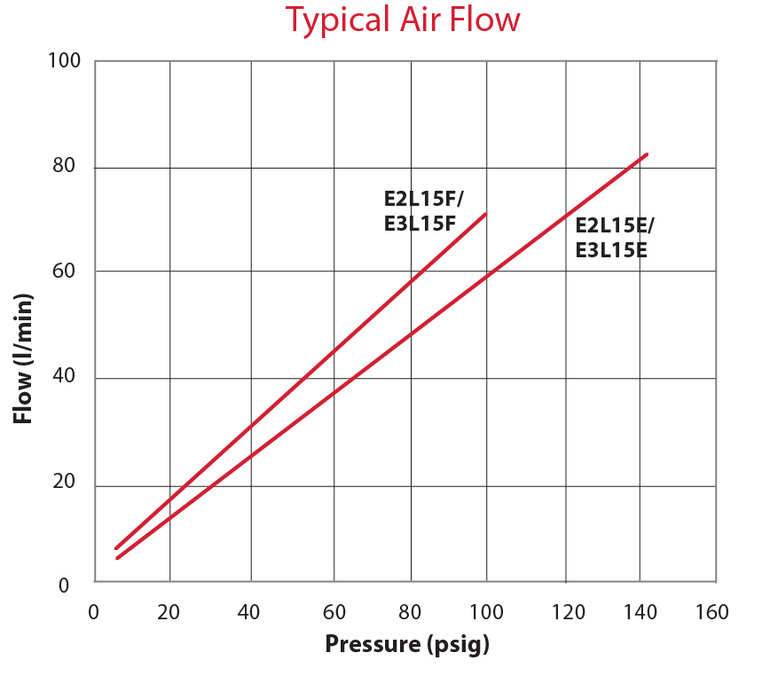

    Max. Flow84 l/min @ 145 psig (10 bar)
    MediumAir, Water, Gas or Compatible Fluids

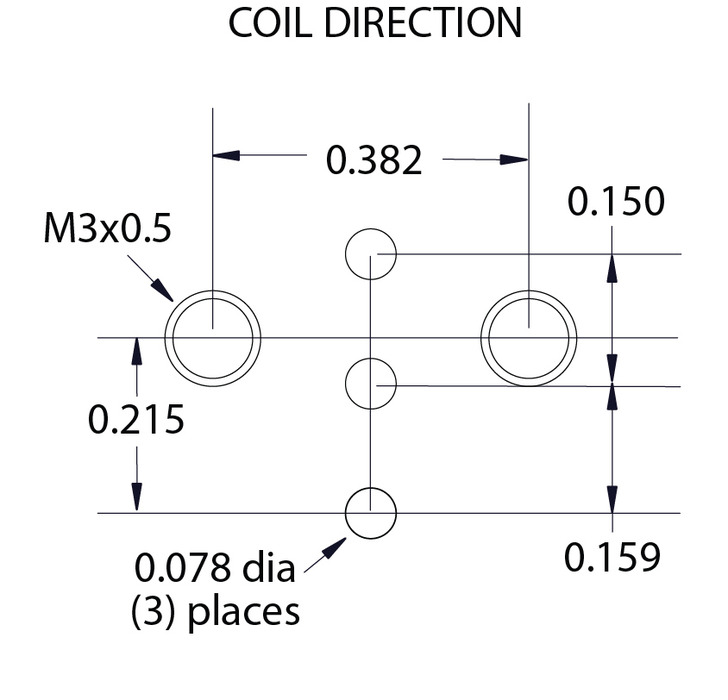

    Mount2 M3 Screws
    Operating Temperature Range23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
    Product Line Brochure10 & 15 mm Valves
    Response Time10 ms nominal
    Voltage12 VDC
    Voltage Tolerance±10%
    Wattage4.0 Watts
    Weight (lbs.)0.0850
    Get CAD files:

    Notes

    A minimum order of 250 valves is required.
