- Standalone or use in conjunction with Cordis Pressure Controls
- Downstream sensor feedback
- Multiple VDC signal outputs
- Static or dynamic applications
- Multiple electrical connection options
- Customizable pressure ranges and mounting options
- IP65 Protection Rating

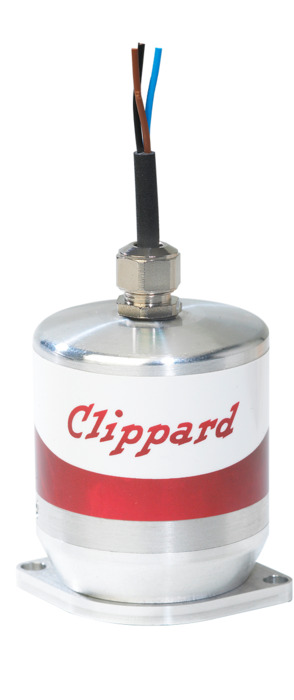

Mounting options available are Male 1/8" NPT, Male 1/8" BSPT, 7/16-20 UNF face seal and manifold mount. These allow the user to place the sensor downstream or in a remote location from the pressure controller. This creates a quicker response and helps avoid any lag in the system.
The manifold mount lends itself well to analytical value-added assemblies. All wetted materials are oxygen compatible and manifold mounting eliminates any possible contamination during assembly.
| 2D Drawings | File |
|---|---|
| Accuracy | ±0.25% of Full Scale |
| Applications Form | Applications Form |
| Calibrated Range | 0 to 7 bar |
| Connection | Flying Leads, 36" (914 mm) |
| Current Draw | <20 mA (sensor only) |
| Data Sheet | Data Sheet |
| Linearity | ±0.25% BFSL |
| Medium | Clean, dry, non-corrosive gases |
| Mounting Attitude | Any |
| Operating Instructions | Operating Instructions |
| Operating Temperature Range | 32 to 158°F (0 to 70°C) |
| Product Line Brochure | Cordis Electronic Controls |
| Protection Rating | IP65 |
| Protection Rating | IP65 |
| Response Time | <5 ms |
| Sensor Mounting | Manifold |
| Signal Output | 0 to 10 VDC |
