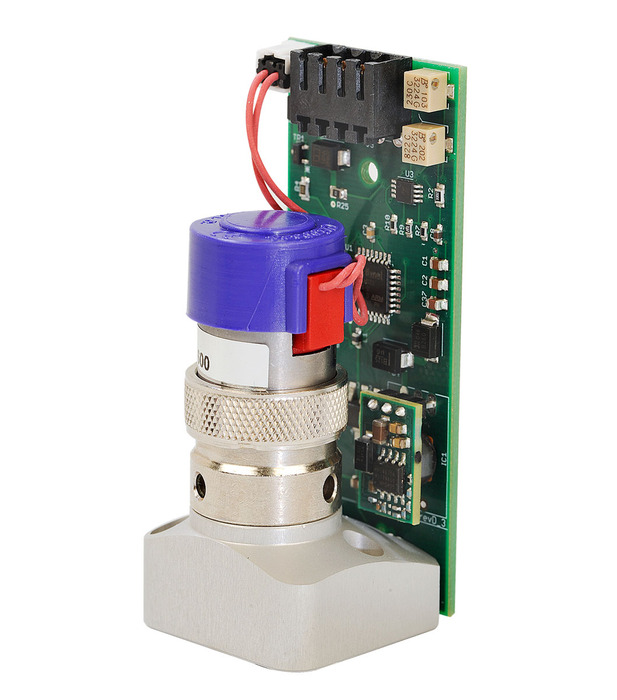

Clippard's Cordis CP1 Pressure Controller utilizes Clippard's proven EVP and DVP proportional valves to allow for steady, accurate, repeatable downstream pressure control as demand or process changes. The result is incredibly precise, linear pressure control within a closed-loop system that provides ultra-high resolution and repeatability.
The CP1 Series consists of a microcontroller, an internal pressure sensor, and a Clippard proportional valve. The inlet valve is connected to the moderately regulated supply pressure. Once a command is increased, the proportional valve opens up to allow supply pressure to pass over the sensor element which provides an active feedback for the microcontroller to satisfy the set point in the process. If at any point the sensor detects a value high than the set point, the proportional valve closes and allows the process to consume the remaining downstream pressure.
- Smooth, linear control
- Integrated internal feedback
- Multiple flow configurations
- Dynamic proportional pressure control
- Non-pulsing proportional fill
- Customizable pressure ranges and mounting options
- Compatible with multiple inert gasses
- Customizable calibrated ranges
| **NOTE** | Consult Clippard for Custom Calibrated Ranges |
|---|---|
| 2D File | 2D File |
| Accessories | Power Cord, 6' to 4-Pin Male Mating Connector CPCH-CA4 |
| Accuracy | ±0.25% of Full Scale |
| Calibrated Pressure Range | 0 to 100 psig |
| Current Draw | <250 mA max. |
| Data Sheet | Data Sheet |
| Filtration | 40 micron (recommended) |
| Flow @ Max. Pressure | 6.7 l/min @ 100 psig (7 bar) |
| Flow Range | 2.7 to 65 l/min Typical, ±10% @ 100 psig (7 bar) |
| Function | Normally-Closed Proportional |
| Linearity | ±0.05% BFSL |
| Max. Hysteresis | ±0.05% of Full Scale |
| Medium | Clean, dry, non-corrosive gases |
| Mount | In-Line |
| Mounting Attitude | Any |
| Operating Instructions | Operating Instructions |
| Operating Pressure | Vac. to 150 psig (10.3 bar) |
| Operating Temperature Range | 32 to 120°F (0 to 48.9°C) |
| Product Line Brochure | Cordis Electronic Controls |
| Resolution | ≤5 mV |
| Response Time | <20 ms (application dependent) |
| Signal/Command | 0 to 10 VDC |
| Typical Flow | 2.7 to 65 l/min (±10% @ 100 psig [7 bar]) |
| Unit | Imperial |
| Weight (lbs.) | 1.21 |
