CM-034

More Views

CM-034

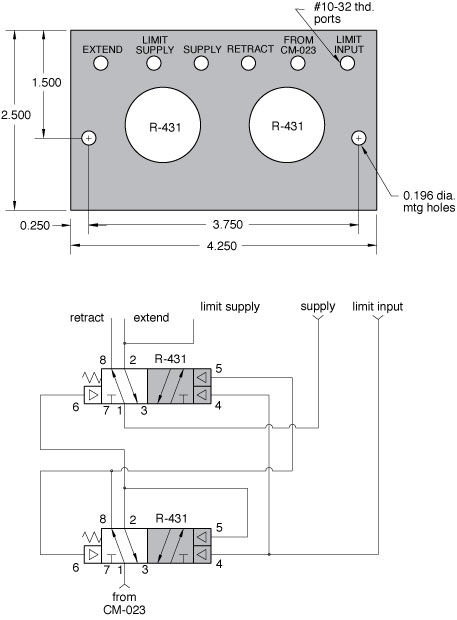

Subplate for Back Pressure Latched with Clamp
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
Max PSI120 PSIG
Temperature Range30 to 180°F
Weight (lbs.)0.3500
Get CAD files:

Notes

For operation of a clamp or collet system where two hand no tie down input is required to be held continuously until clamp is fully engages. Two hand no tie down circuit is reengaged to release the clamp mechanism. Valves must be ordered separately.
