3PS-1/2

3PS-1/2

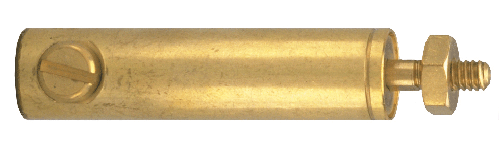

Obsolete-3/8” Cylinder, Single Acting, Spring Return, 1/2”
Clippard has divested our cylinder product lines to Compact Automation. Click here to learn more.

To continue ordering the same cylinders you have ordered in the past, please click here to locate your nearest Clippard distributor.
ActionSpring Return, Air Extend
Bore0.375
Max PSI125 psig
MediumAir
MountPlain End
Ports#10-32 Thread
Power Factor0.1
RodNon-Rotating Rod
Rod Diameter0.125
Spring Force (extended)30 oz
Spring Force (retracted)12 oz
Stroke0.5000
Temperature Range30 to 230°F
Weight (lbs.)0.0900
Get CAD files:

Notes

Rolled Constructed with non-rotating thread brass rod
