Pneumatic Solutions for Lumbar Support

Category:

Long periods of sitting flatten the lumbar curve that leads to a variety of back problems. Seating that lacks proper and adjustable lumbar support and cushion bounce leave their users vulnerable to physical pain and long-term damage.


Pneumatic Solutions for Lumbar Support


Lumbar Support Systems

Lumbar support systems cradle the neutral back curvature, reducing back and neck strain by promoting good posture for long hours of work or driving. This support must be dynamic enough to adapt to a number of different body shapes, while firm enough to provide effective support.


Lumbar ANSI


Lumbar ANSI

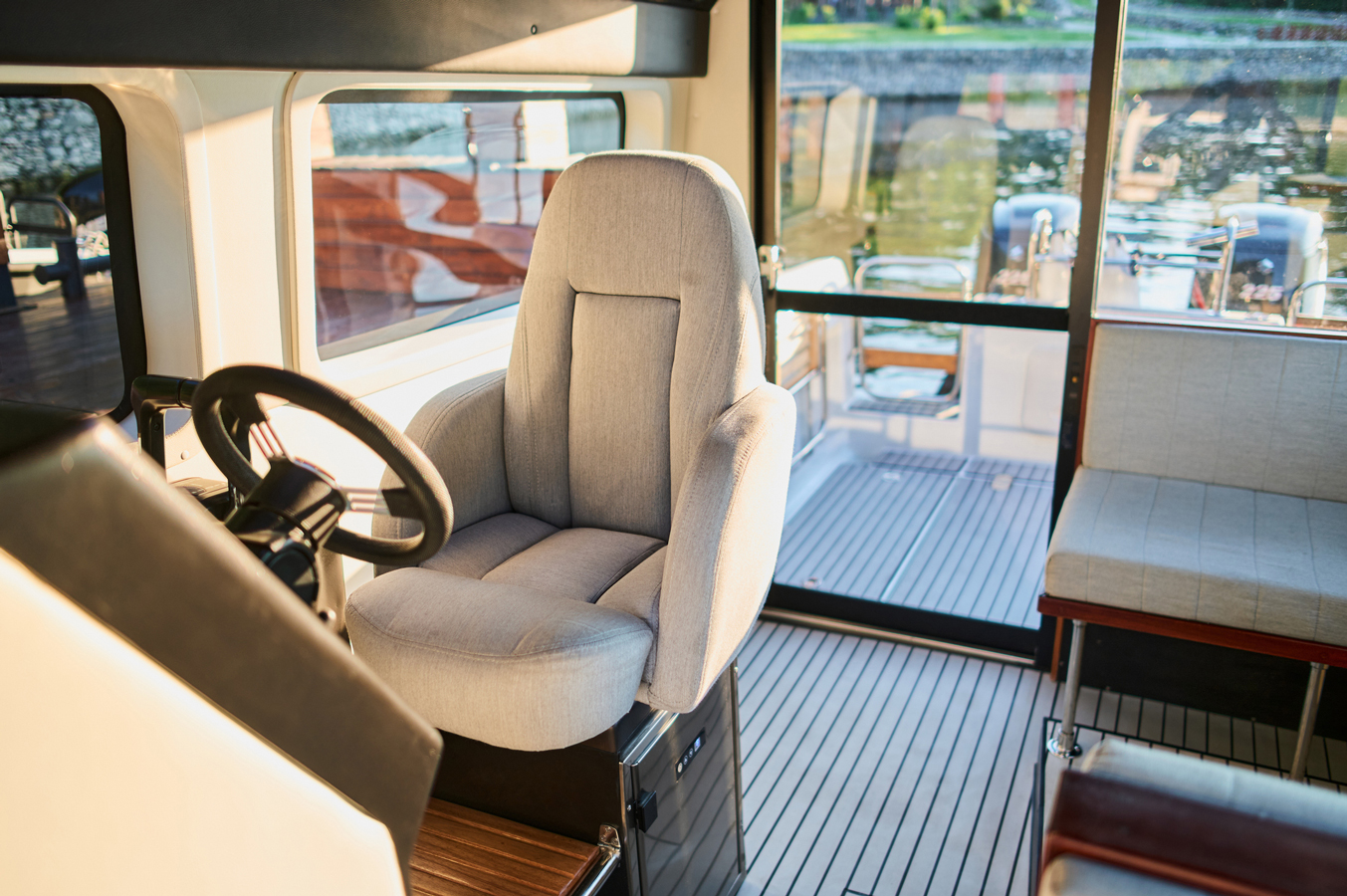

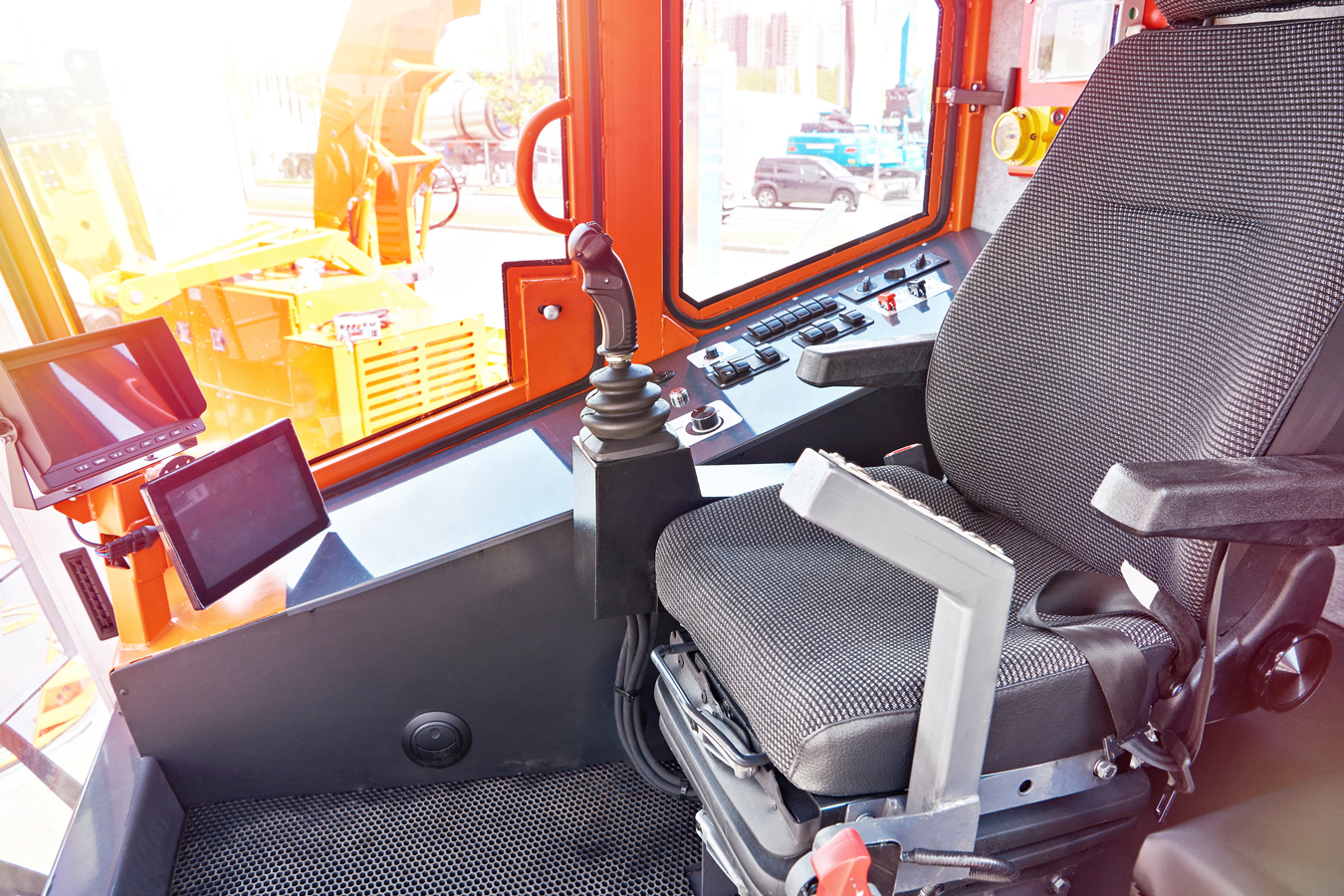

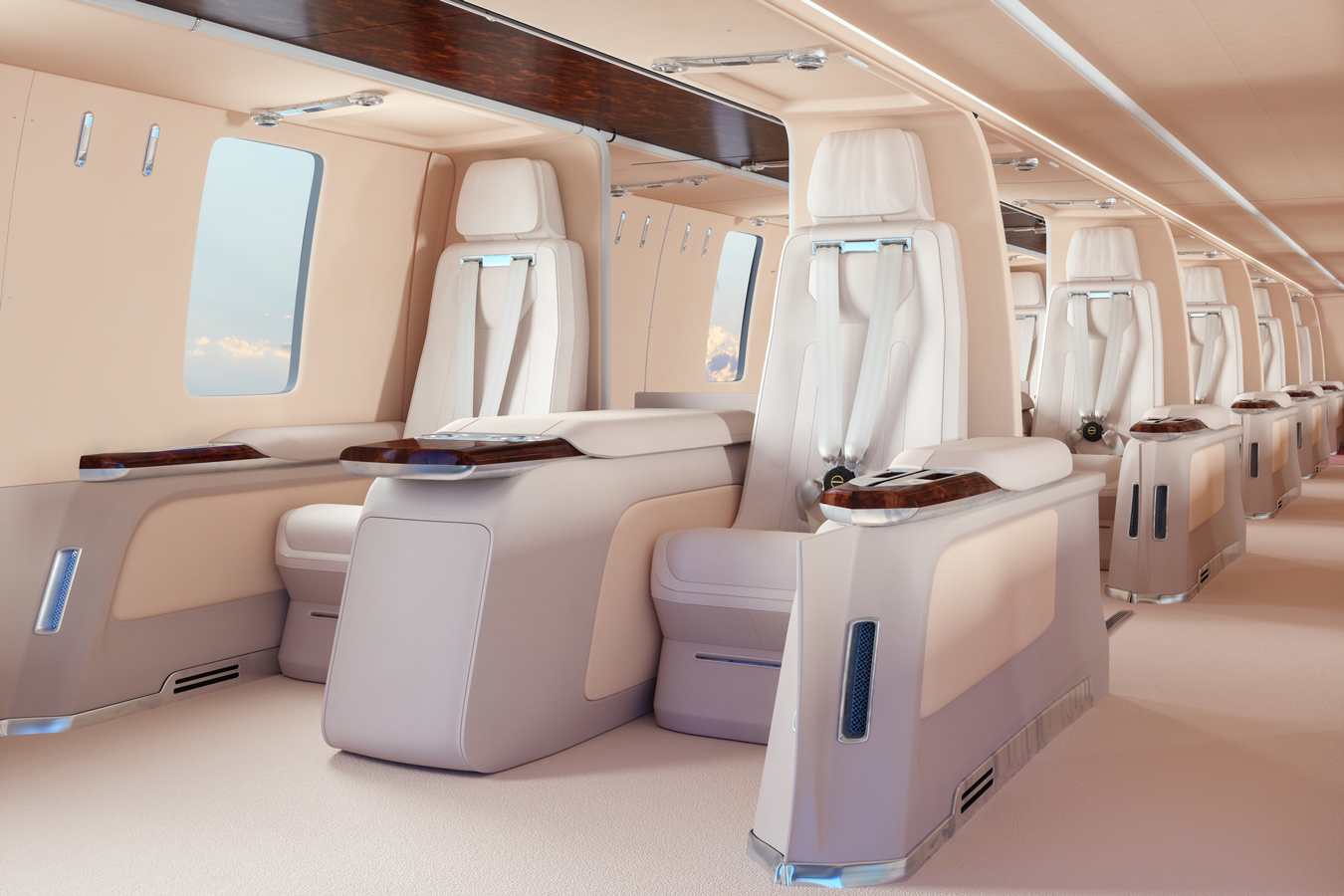

Fill & Bleed Circuits

A fill and bleed circuit is a combination of pneumatic valve components used to inflate a volume or apparatus in one controllable function and to release or vent pressure in a second controllable function. These circuits are commonly used in applications where a particular pressure, firmness or position can be controlled with the addition or venting of pressure.


Ride Control Systems

These systems utilize pneumatic valves that again "fill and bleed" a device that controls the cushion of the the seat. In these applications, they also incorporate a regulator that allows pressure adjustment based on variables such as weight differences.



Clippard has been successfully partnering with progressive companies in the design and development of innovative pneumatic solutions for their unique lumbar and seat support systems.

• Engineering application & product application expertise
• Large inventory
• Worldwide distribution
• Complete line of miniature valves, fittings,
  tubing and more

Contact Clippard today to see how our engineering and application expertise can assist in the development of efficient, compact pneumatic assemblies for your next critical project.


 Contact Clippard   Contact Clippard
Locate a Clippard Distributor  Locate a Distributor
Download Whitepaper PDFDownload Whitepaper PDF



Relevant Product Lines:

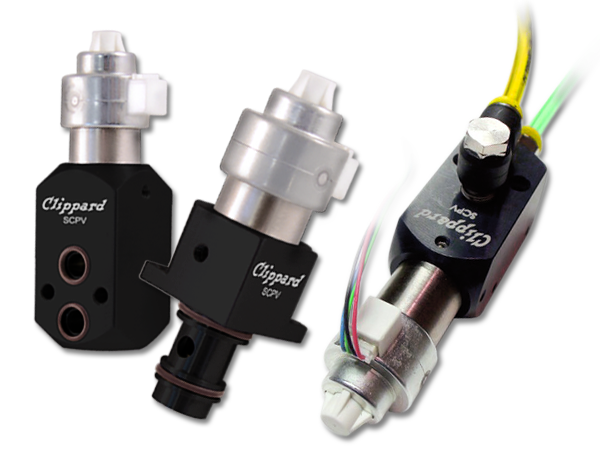

Electronic Valves


Electronic Valves
Stepper-Controlled
Needle Valves


Stepper-Controlled Needle Valves
10 mm &
15 mm Valves

10 mm & 15 mm Valves
EM Stud Mount
Electronic Valves


EM Stud Mount Valves

Pressure Regulators


Pressure Regulators

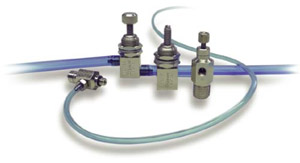

Needle Valves
