New! The Eclipse: Proportional Isolation Valve

A proportional isolation valve like no other...

Utilizing the industry's most robust and powerful miniature linear actuator, the patent pending stepper-controlled Eclipse proportional isolation valve leads the industry in performance and durability. This valve is ideal in critical applications for liquid and gas delivery, medical, analytical and industrial automation requiring ultra fine resolution and excellent repeatability. In addition, the unique design allows for custom flow profiles.

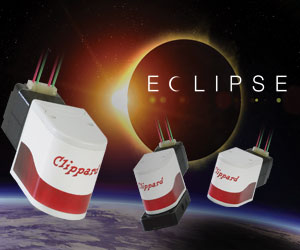

Eclipse Proportional Isolation Valve

Primary Eclipse Benefits:

  • Leak free (<0.05 sccm)
  • Excellent linearity (<4% of full-scale)
  • Fast response (<2 ms reaction time)
  • Cycle life of typically >1 million
  • Repeatability <0.5% of full travel








Eclipse Proportional Isolation Valve Typical Flow Curves for Air and Water

Medium   Liquids and gases

Typical Cycle Time for Full Travel   1.1 seconds at 1,000 steps per second

Wetted Material   Ceramic (others depending on porting option)

Pressure Range   Vac to 30 psig (highly modifiable)

Proof Pressure (Overpressure)   50 psig

Flow Range   Air: 0 to 8.0 l/min -0/+10% (0.28 scfm) @ 30 psig
Water: 0 to 210 ml/min -0/+10%(0.0074 scfm) @ 30 psig

Flow Resolution   0.19 ml/min water and 0.007 l/min air max @ 30 psig per full step depending on pressure

Position Resolution   0.00006"

Ambient/Environment   32 to 180˚F

Driver   Bipolar chopper drive required

Supply Voltage to Motor Driver

20 VDC @ 30 psig


Current/Phase   0.49 amps

Mounting   Manifold or flat bottom (ZDVF)

Power Consumption   2.5 watts nominal only during adjustment, zero power consumption to maintain position

Seals

Valve: None
Port: FKM standard, EPDM and others upon request
