Clippard Needle Valves

Category:
Product Information
  Clippard Miniature Needle Valves

  MNV Series #10-32 Valves

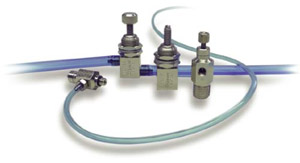

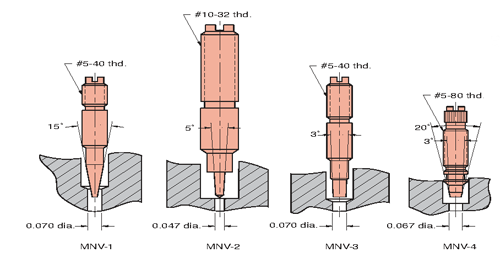

Adjustable control needle valves restrict flow in both directions. There are eight models offered by Clippard with various ports and needle configurations to provide coarse or fine flow adjustment.  The diagram of needle shapes and the part show the difference between these models.

• #10-32, 1/4" NPT, 1/8" NPT and 3/8" NPT Ports
• Direct, in-line or cartridge mounting
• Brass or ENP body, ENP or stainless steel needle, Nitrile seal
• Screwdriver or knurled knob adjustment

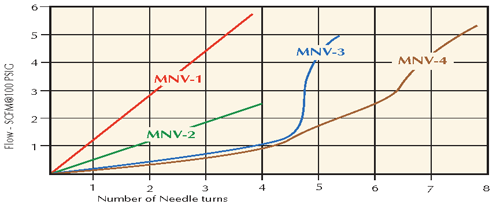

  Product Series                         Air Flow                  Inlet Pressure                             Needle Turn
MNV-1 Series   6 scfm @ 100 psig   2,000 psig max.                                   15°
MNV-2 Series   2.5 scfm @ 100 psig   300 psig max.                                       5°
MNV-3 Series   5 scfm @ 100 psig   2,000 psig max.                                    3°
MNV-4 Series   5 scfm @ 100 psig   300 psig max.                                       3°

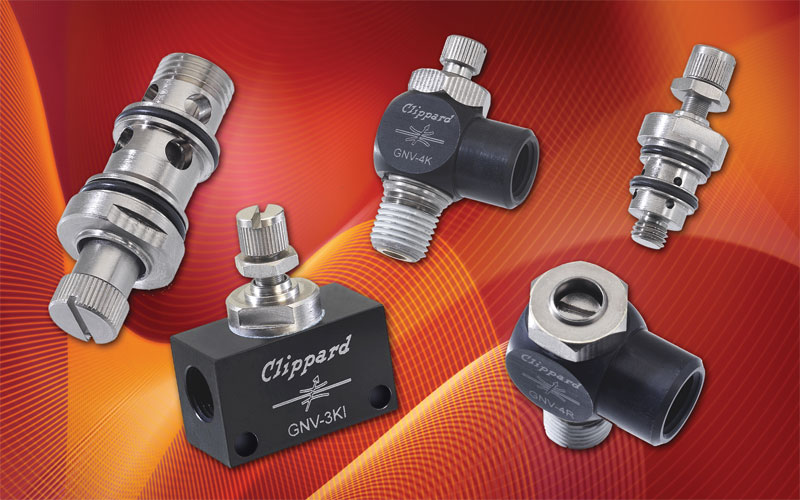

GNV Series Valves

Clippard GNV Series Needle Valves

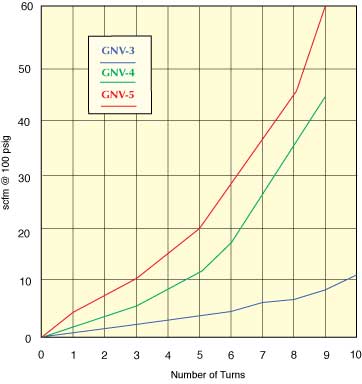

  Product Series                          Air Flow                             Inlet Pressure                            Port
  GNV-3 Series 11 scfm @ 100 psig 300 psig max.                           1/8" NPT
  GNV-4 Series 45 scfm @ 100 psig 300 psig max.                           1/4" NPT
  GNV-5 Series 60 scfm @ 100 psig 300 psig max.                            3/8" NPT
