EFB Fill & Bleed Circuits

Knowledge Base

Learn More >

Clippard's EFB series electronic fill and bleed circuits are a combination of Clippard pneumatic valve components used to inflate a volume or apparatus in one controllable function, and to release or vent pressure in a second controllable function. Fill and bleed circuits are commonly used in many applications where a particular pressure, firmness, or position can be controlled with the addition or venting of pressure.

•  Compact, robust design •  Extremely fast response •  Exceptionally long life •  Multiple flow and pressure options •  Variety of power and connection options •  RoHS compliant

Read MoreRead More about the EFB Series
      Configure & View Products




  EFB Electronic Fill & Bleed Circuits
The EFB series electronic fill and bleed circuits are a combination of Clippard pneumatic valve components used to inflate a volume or apparatus in one controllable function, and to release or vent pressure in a second controllable function. Fill and bleed circuits are commonly used in many applications where a particular pressure, firmness, or position can be controlled with the addition or venting of pressure.



To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-12 of 12
EFB-1DV-12 Fill & Bleed Circuit, DV-2M Valve, In-Line Mount, 12 VDC
EFB-1DV-12-L Fill & Bleed Circuit, DV-2M Valve, In-Line Mount, 12 VDC
EFB-1DV-24 Fill & Bleed Circuit, DV-2M Valve, In-LineMount, 24 VDC
EFB-1DV-24-L Fill & Bleed Circuit, DV-2M Valve, In-Line Mount, 24 VDC
EFB-2DV-12 Fill & Bleed Circuit, DV-2M Valve, Manifold, 12 VDC
EFB-2DV-12-L Fill & Bleed Circuit, DV-2M Valve, Manifold Mount, 12 VDC
EFB-2DV-24 Fill & Bleed Circuit, DV-2M Valve, Manifold Mount, 24 VDC
EFB-2DV-24-L Fill & Bleed Circuit, DV-2M Valve, Manifold Mount, 24 VDC
EFB-2EV-12 Fill & Bleed Circuit, EV-2M Valve, Manifold, 12 VDC
EFB-2EV-12-L Fill & Bleed Circuit, EV-2M Valve, Manifold, 12 VDC
EFB-2EV-24 Fill & Bleed Circuit, EV-2M Valve, Manifold, 24 VDC
EFB-2EV-24-L Fill & Bleed Circuit, EV-2M Valve, Manifold, 24 VDC
Pneumatic Solutions for Digital Mass Flow Controls Digital Mass Flow Controllers feature microprocessor capabilities that allow for either analog or digital input.

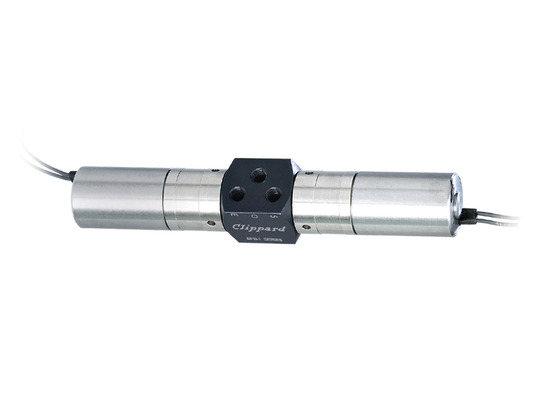

EFB Series Electronic Fill & Bleed Circuit Clippard EFB Series Electronic Fill & Bleed Circuit A Fill and Bleed Circuit is a combination of pneumatic valve components used to inflate a volume or apparatus in one controllable function and to release or vent pressure in a second controllable function. Fill and bleed circuits are commonly used in many applications where a particular pressure, firmness, or position can be controlled with the addition or venting of pressure. Features • Compact, robust

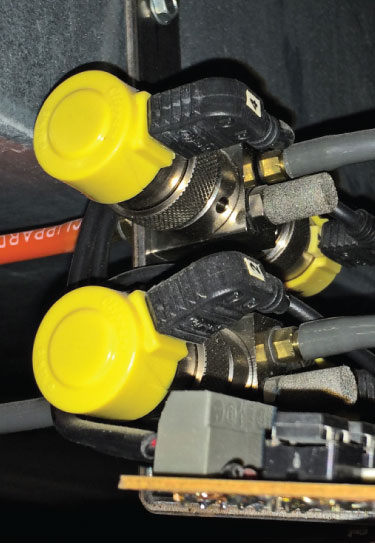

Fill & Bleed Applications Fill and bleed circuits are ideal for many applications including pressure control systems, lumber support and cylinder positioning.
