DV Series Valves

Clippard Minimatic® electronic valves are precision-built utilizing Clippard's unique, patented valving principle. Designed as the next generation of the well-known and trusted original EV Series, the powerful DV Series is compact, quick and built to last—over 1,000,000,000+ cycles! With a solid, compact design and extremely high flow rates, these valves are well-suited for many applications in a variety of different industries including medical, analytical, packaging, manufacturing and more.

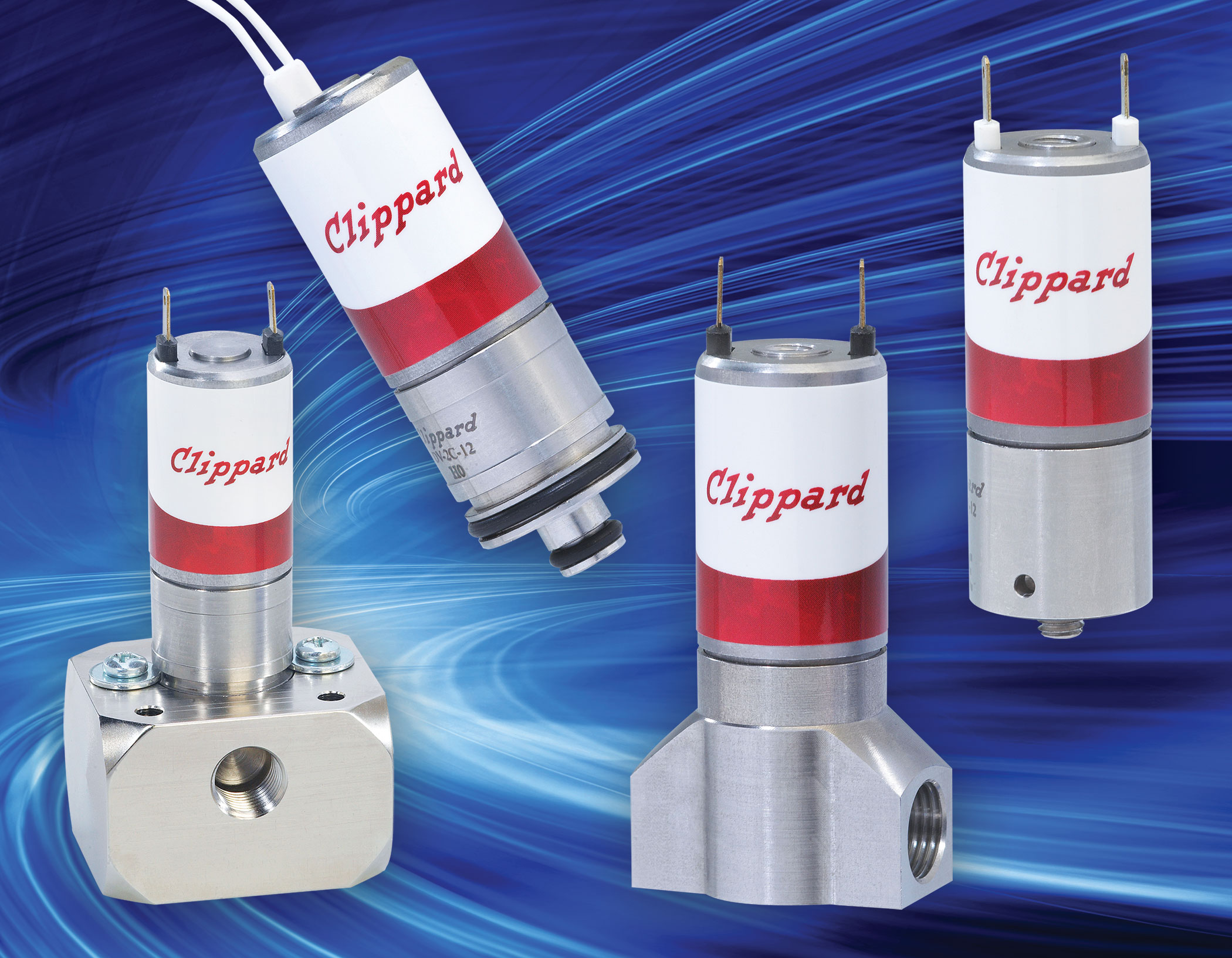

Clippard DV Series High Flow Electronic Valves

Features:

• High flow rate:
2-Way: up to 100 l/min
3-Way: up to 70 l/min fully ported
• Industry standard for leak-free operation
• Over 1,000,000,000+ cycles!
• Fast response time
• Low heat rise/low power
• Robust stainless steel "Spider" flat armature spring
• Designed to accommodate large flows with more stroke
• CE Certified

Valve Type: 2-Way Normally-Closed, 3-Way Normally-Closed or
   Normally-Open (Fully-Ported)
Medium: Compatible Fluids (40 micron filter recommended)
Air Flow: DV-2/DT-2: 100 l/min @ 100 psig*
   DV-2-L/DT-2-L: 100 l/min @ 50 psig*
   DV-3/DT-3: 70 l/min @ 100 psig*
Pressure Range: Vac. to 100 psig*
Power Consumption: 1.9 watts
Ports: #10-32 or M5 (on Manifold Mounted versions)
Ambient Temperature Range: 32 to 130°F at continuous duty*
Response: 10 to 15 milliseconds*
Electrical Connections: Spade Terminals or Wire Leads*
Operating Range: 95 to 125% of rated voltage
Voltage: 12 or 24 VDC
Mounting: In-line, manifold, or cartridge style (inserts into 3/4" bore)
Wetted Materials: Ultem™, Stainless Steel, PPS**
Seal Material: Nitrile standard. FKM, EPDM, Silicone optional**
