8 mm Electronic Valves

Knowledge Base

Learn More >

These direct actuating valves offer an extremely fast response time for accurate dosing of minute volumes with the same long life you expect from the original Clippard EV line of electronic valves, now in a 8 mm cartridge package. The valve was designed with a unique patented valving principle using Clippard's robust stainless steel "spider", with only one moving part that travels less than 0.007".

Due to very low moving weights, they are extremely quiet and emit very low vibration. Subminiature size and low energy consumption make them ideal for transportable and mobile systems, among others.
The ST series valves can be fully customized according to the user's unique requirements. Consult Clippard with your specific application.
Clippard SV Series 7 mm 2-Way Normally-Closed Electronic Valves
Features:

•1,000,000,000+ cycle life • Extremely small dead volume • Low vibration and noise • Fast response time • Exceptional repeatability and reliability • Compact and ideal for sub-assemblies • 100% tested

Valve Type: 3-Way, Normally-Closed Medium:  Air, Water, Gas & Compatible Fluids  Wattage:  0.55 watts Response Time:  <5 ms* Temperature Range:  32 to 122°F (50˚C) Connector:  Terminal Pins Voltage:  12 or 24 VDC Mount:  Cartridge Manifold:  STM-01 (#10-32), M-STM-01 (M5) Weight:  0.15 oz. Wetted Materials:  Stainless Steel Seal Material:  FKM standard. EPDM available.

* Customizable to the specifications of the application. Contact Clippard.

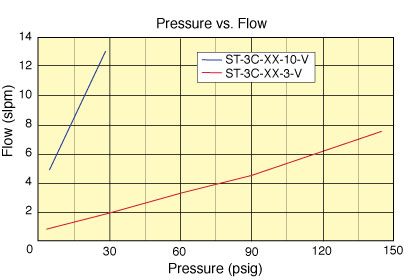

SV Series Flow Chart 8mm Electronic Valve



To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 0-0 of 0
Length Calculator Convert inches, feet, yards, miles, millimeters, centimeters, meters, or kilometers to calculate length.
Hit & Hold Circuit Recommendations for Clippard Valves Learn more about hit and hold circuits and the features and benefits of them.
Orifice Size Calculator This easy-to-use calculator will help you calculate the orifice size of your valve...

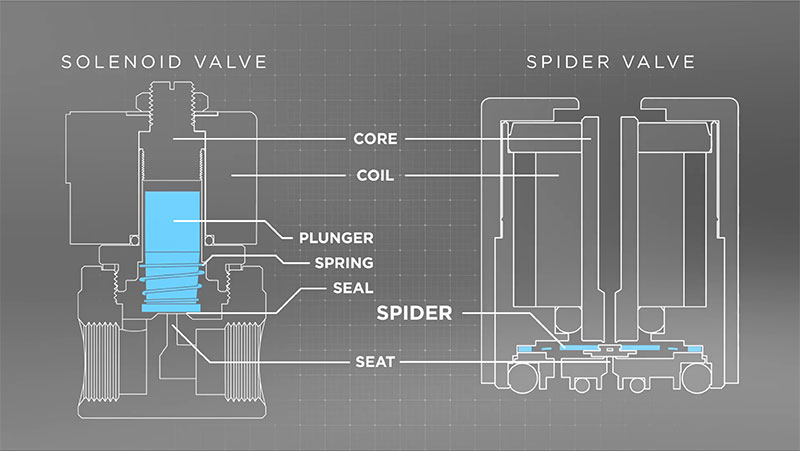

Clippard's Spider Technology Learn more about how Clippard's Spider Technology delivers exceptional reliability, low power consumption, and precise control...
Clippard Releases New ST Series 8 mm Electronic Valves These 8 mm electronic valves offer fast response time for accurate release of minute volumes of fluids.
Automated Spool Valve Assembly Machine Increases Efficiency, Boosts Capacity Learn more about how Clippard automated the spool valve assembly process to increase production efficiency...
/
10 mm & 15 mm Valve Customization Options Learn more about customization options for the 10 mm and 15 mm electronic valves.
An Overview of Clippard 10 mm & 15 mm Electronic Valves These 2-way and 3-way valves are perfect for small areas where compact valves are needed. Clippard has a large inventory with fast delivery and experienced support.

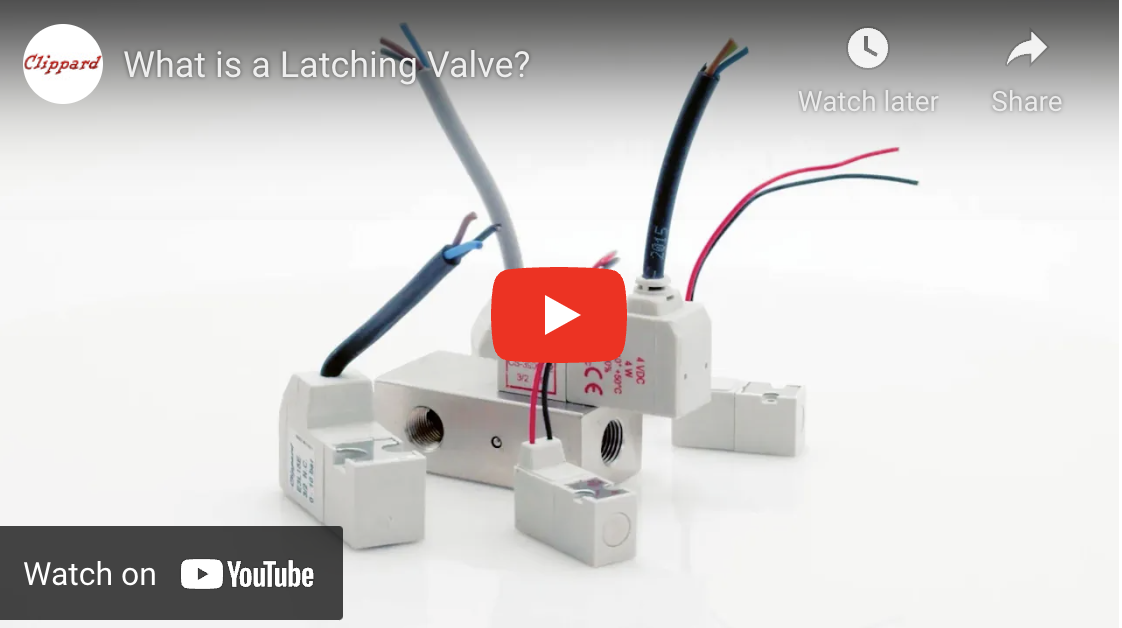

Latching Valves 101 How do latching valves function and what benefits do they offer? Check out this quick video to learn more.
