MAR-1 Regulators

Knowledge Base

Learn More >

The MAR-1 Regulators are simple, robust, and cost-effective in a small package with exceptionally long life. The relieving design maintains a constant pressure output while non-relieving regulators do not automatically compensate for changes in downstream flow or pressure. As regulator applications continue to increase, Clippard is meeting the demand with a variety of products.

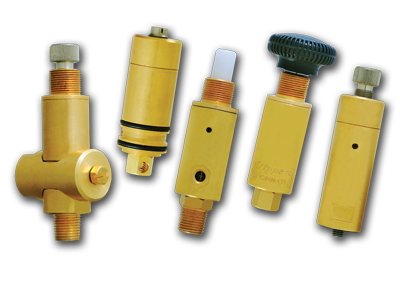

MAR Series Miniature Pressure Regulators

When Clippard introduced a miniature regulator in 1962, the MAR-1 became very popular as a simple, robust, and cost-effective regulator in a small package with exceptionally long life. As regulator applications continue to increase, Clippard is meeting the demand with a variety of new models, options and improvements.

Regulators are offered in either relieving or non-relieving versions. The relieving design maintains a constant pressure output even when downstream conditions change, while non-relieving regulators do not automatically compensate for changes in downstream flow or pressure. There is no vent to atmosphere, as in a relieving type regulator, and the output pressure can increase due to a downstream event. Non-relieving versions can accommodate compatible liquid applications.

Materials: Brass, Nitrile seals, stainless steel
Input Pressure: 300 psig inlet pressure max






MAR-1C Plunger Operation: As plunger is depressed, pressure increases proportionally to the travel; when plunger is released the input is closed and the output pressure is exhausted to atmosphere.

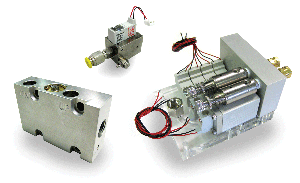

Special Configurations & Assemblies

Clippard has been and still is a pioneer in miniature pneumatics! These robust and durable regulators can be customized and/or combined with other components to meet your exact requirements.  Call today to speak to one of our Technical Specialists.

Tech Tip Video: Clippard's MAR miniature regulator used as an air spring

Related Content





  Miniature Pressure Regulators
  • Simple, robust design
  • Known for reliability, durability and long life
  • Various adjustment options and mounting styles



To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-100 of 207 Page: 1 ->2 3
MAR-1MK-3 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
M-MAR-1C Pressure Regulator, M5 Ports, Plunger Actuated, 0.7-6.9 bar
M-MAR-1P-5 Pressure Regulator, G1/8 Inlet, M5 Outlet, Knurled Knob, 0.7-3.4 bar
M-MAR-1BP Pressure Regulator, G1/8 Swivel Mount, Knurled Knob, 0.7-6.9 bar
MAR-1BP-6 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, 10-60 psig
MAR-1-3 Pressure Regulator, #10-32 Ports, Knurled Knob, 10-30 psig
MAR-1-5 Pressure Regulator, #10-32 Ports, Knurled Knob, 10-50 psig
MAR-1-6 Pressure Regulator, #10-32 Ports, Knurled Knob, 10-60 psig
MAR-1BP Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, 10-100 psig
MAR-1BP-2 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, 10-20 psig
MAR-1BP-3 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, 10-30 psig
MAR-1BP-4 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, 10-40 psig
MAR-1BP-5 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, 10-50 psig
MAR-1BP-7 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, 10-70 psig
MAR-1BPF Pressure Regulator, 1/8" NPT Swivel Mount, Screwdriver Slot, 10-100 psig
MAR-1BPF-2 Pressure Regulator, 1/8" NPT Swivel Mount, Screwdriver Slot, 10-20 psig
MAR-1BPF-4 Pressure Regulator, 1/8" NPT Swivel Mount, Screwdriver Slot, 10-40 psig
MAR-1BPF-5 Pressure Regulator, 1/8" NPT Swivel Mount, Screwdriver Slot 10-50 psig
MAR-1BPF-6 Pressure Regulator, 1/8" NPT Swivel Mount, Screwdriver Slot, 10-60 psig
MAR-1BPF-7 Pressure Regulator, 1/8" NPT Swivel Mount, Screwdriver Slot, 10-70 psig
MAR-1BPFNR-5 Pressure Regulator, 1/8" NPT Swivel, Screwdriver Slot, Non-Relieving, 10-50 psig
MAR-1BPFNR-6 Pressure Regulator, 1/8" NPT Swivel, Screwdriver Slot, Non-Relieving, 10-60 psig
MAR-1BPFNR-7 Pressure Regulator, 1/8" NPT Swivel, Screwdriver Slot, Non-Relieving, 10-70 psig
MAR-1BPK Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, 10-100 psig
MAR-1BPK-2 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, 10-20 psig
MAR-1BPK-3 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, 10-30 psig
MAR-1BPK-4 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, 10-40 psig
MAR-1BPK-6 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, 10-60 psig
MAR-1BPK-7 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, 10-70 psig
MAR-1BPKNR Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, Non-Relieving, 10-100 psig
MAR-1BPKNR-3 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, Non-Relieving,10-30 psig
M-MAR-1-4 Miniature Regulator, 10 to 40 psig, Standard Mount, M5 Inlet/ M5 Outlet, Knurled Knob (Std.) Adjustment
MAR-1BPKNR-5 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, Non-Relieving,10-50 psig
MAR-1BPKNR-6 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, Non-Relieving,10-60 psig
MAR-1BPKNR-7 Pressure Regulator, 1/8" NPT Swivel Mount, Plastic Knob, Non-Relieving, 10-70 psig
MAR-1BPNR Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, Non-Relieving, 10-100 psig
MAR-1BPNR-3 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, Non-Relieving, 10-30 psig
MAR-1BPNR-6 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, Non-Relieving, 10-60 psig
MAR-1BPNR-7 Pressure Regulator, 1/8" NPT Swivel Mount, Knurled Knob, Non-Relieving, 10-70 psig
MAR-1C Pressure Regulator, #10-32 Ports, Plunger Actuated, 10-100 psig
MAR-1C-2 Pressure Regulator, #10-32 Ports, Plunger Actuated, 10-20 psig
MAR-1C-3 Pressure Regulator, #10-32 Ports, Plunger Actuated, 10-30 psig
MAR-1C-6 Pressure Regulator, #10-32 Ports, Plunger Actuated, 10-60 psig
MAR-1C-7 Pressure Regulator, #10-32 Ports, Plunger Actuated, 10-70 psig
MAR-1CP Pressure Regulator, 1/8" NPT Inlet, #10-32 Outlet, Plunger Actuated, 10-100 psig
M-MAR-1-6 Pressure Regulator, M5 Ports, Knurled Knob, 0.7-4.1 bar
MAR-1CP-3 Pressure Regulator, 1/8” NPT Inlet, #10-32 Outlet, Plunger Actuated, 10-30 psig
MAR-1CP-4 Pressure Regulator, 1/8” NPT Inlet, #10-32 Outlet, Plunger Actuated, 10-40 psig
MAR-1CP-5 Pressure Regulator, 1/8” NPT Inlet, #10-32 Outlet, Plunger Actuated, 10-50 psig
MAR-1CP-6 Pressure Regulator, 1/8” NPT Inlet, #10-32 Outlet, Plunger Actuated, 10-60 psig
MAR-1F-2 Pressure Regulator, #10-32 Ports, Screwdriver Slot, 10-20 psig
MAR-1F-3 Pressure Regulator, #10-32 Ports, Screwdriver Slot, 10-30 psig
MAR-1F-4 Pressure Regulator, #10-32 Ports, Screwdriver Slot, 10-40 psig
MAR-1F-5 Pressure Regulator, #10-32 Ports, Screwdriver Slot, 10-50 psig
MAR-1F-6 Pressure Regulator, #10-32 Ports, Screwdriver Slot, 10-60 psig
MAR-1F-7 Pressure Regulator, #10-32 Ports, Screwdriver Slot, 10-70 psig
MAR-1FNR Pressure Regulator, #10-32 Ports, Non-Relieving, Screwdriver Slot, 10-100 psig
MAR-1FNR-3 Pressure Regulator, #10-32 Ports, Non-Relieving, Screwdriver Slot, 10-30 psig
MAR-1FNR-4 Pressure Regulator, #10-32 Ports, Non-Relieving, Screwdriver Slot, 10-40 psig
MAR-1FNR-5 Pressure Regulator, #10-32 Ports, Non-Relieving, Screwdriver Slot, 10-50 psig
MAR-1FNR-6 Pressure Regulator, #10-32 Ports, Non-Relieving, Screwdriver Slot, 10-60 psig
MAR-1FNR-7 Pressure Regulator, #10-32 Ports, Non-Relieving, Screwdriver Slot, 10-70 psig
MAR-1K-3 Pressue Regulator, #10-32 Ports, Plastic Knob, 10-30 psig
MAR-1K-5 Pressue Regulator, #10-32 Ports, Plastic Knob, 10-50 psig
MAR-1K-6 Pressue Regulator, #10-32 Ports, Plastic Knob, 10-60 psig
MAR-1K-7 Pressue Regulator, #10-32 Ports, Plastic Knob, 10-70 psig
M-MAR-1-7 Pressure Regulator, M5 Ports, Knurled Knob, 0.7-4.8 bar
MAR-1KNR-3 Pressure Regulator, #10-32 Ports, Plastic Knob, Non-Relieving, 10-30 psig
MAR-1KNR-4 Pressure Regulator, #10-32 Ports, Plastic Knob, Non-Relieving, 10-40 psig
MAR-1KNR-5 Pressure Regulator, #10-32 Ports, Plastic Knob, Non-Relieving, 10-50 psig
MAR-1KNR-6 Pressure Regulator, #10-32 Ports, Plastic Knob, Non-Relieving, 10-60 psig
MAR-1M Pressure Regulator, #10-32 Manifold Mount, Knurled Knob, 10-100 psig
MAR-1M-2 Pressure Regulator, #10-32 Manifold Mount, Knurled Knob, 10-20 psig
MAR-1M-3 Pressure Regulator, #10-32 Manifold Mount, Knurled Knob, 10-30 psig
MAR-1M-4 Pressure Regulator, #10-32 Manifold Mount, Knurled Knob, 10-40 psig
MAR-1M-5 Pressure Regulator, #10-32 Manifold Mount, Knurled Knob, 10-50 psig
MAR-1M-7 Pressure Regulator, #10-32 Manifold Mount, Knurled Knob, 10-70 psig
MAR-1MF Pressure Regulator, #10-32 Manifold Mount, Screwdriver Slot, 10-100 psig
MAR-1MF-2 Pressure Regulator, #10-32 Manifold Mount, Screwdriver Slot, 10-20 psig
MAR-1MF-3 Pressure Regulator, #10-32 Manifold Mount, Screwdriver Slot, 10-30 psig
MAR-1MF-4 Pressure Regulator, #10-32 Manifold Mount, Screwdriver Slot, 10-40 psig
MAR-1MF-5 Pressure Regulator, #10-32 Manifold Mount, Screwdriver Slot, 10-50 psig
MAR-1MF-6 Pressure Regulator, #10-32 Manifold Mount, Screwdriver Slot, 10-60 psig
MAR-1MFNR Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Screwdriver Slot, 10-100 psig
MAR-1MFNR-3 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Screwdriver Slot, 10-30 psig
MAR-1MFNR-5 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Screwdriver Slot, 10-50 psig
MAR-1MFNR-6 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Screwdriver Slot, 10-60 psig
MAR-1MFNR-7 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Screwdriver Slot, 10-70 psig
MAR-1MK Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
MAR-1MK-2 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
MAR-1MK-4 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
MAR-1MK-5 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
MAR-1MK-6 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
MAR-1MK-7 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
MAR-1MKNR Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-100 psig
MAR-1MKNR-4 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-40 psig
MAR-1MKNR-5 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-50 psig
MAR-1MKNR-6 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-60 psig
MAR-1MKNR-7 Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Plastic Knob, 10-70 psig
MAR-1MNR Pressure Regulator, #10-32 Mnfd. Mount, Non-Relieving, Knurled Knob, 10-100 psig
Clippard Offers Expanded Miniature Regulator Series Clippard MAR-1 Miniature Regulators Now Available with Newly Expanded Mounting Configurations When Clippard introduced a miniature regulator in 1962, the MAR-1 became very popular as a simple, robust, and cost-effective regulator in a small package with exceptionally long life. As regulator applications continue to increase, Clippard is meeting the demand with a variety of new models, options and improvements. Regulators are offered in either relieving or non-relieving versions. The relieving design maintains a constant pressure output even when downstream conditions change, while non-relieving regulators do not automatically compensate for changes in downstream flow or pressure. There is no vent to atmosphere, as in a relieving type regulator, and the
1022 Non-Contact Proximity Sensor Clippard 1022 Non-Contact Proximity sensor Clippard's 1022 Non-Contact Air Proximity Sensor has no moving parts and will sense any flat or curved object which presents a sensing surface of 1/4" or more to the sensing nozzle. 1022 Non-Contact Proximity Sensor Diagrams

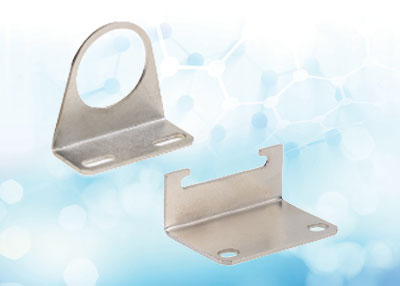

FRL Mounting Accessories Looking for mounting hardware for Clippard FRLs? Check out these easy-to-reference charts...
