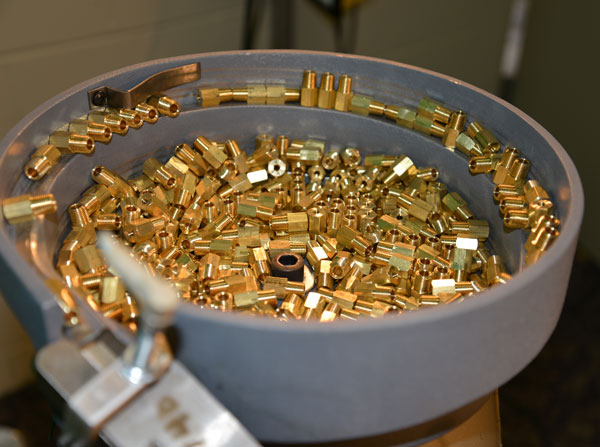

- Clippard's Automated Pneumatic Stamping Machine
- Enhancing Air Compressor Efficiency with Pneumatic Valves
- Air Flow Calculator

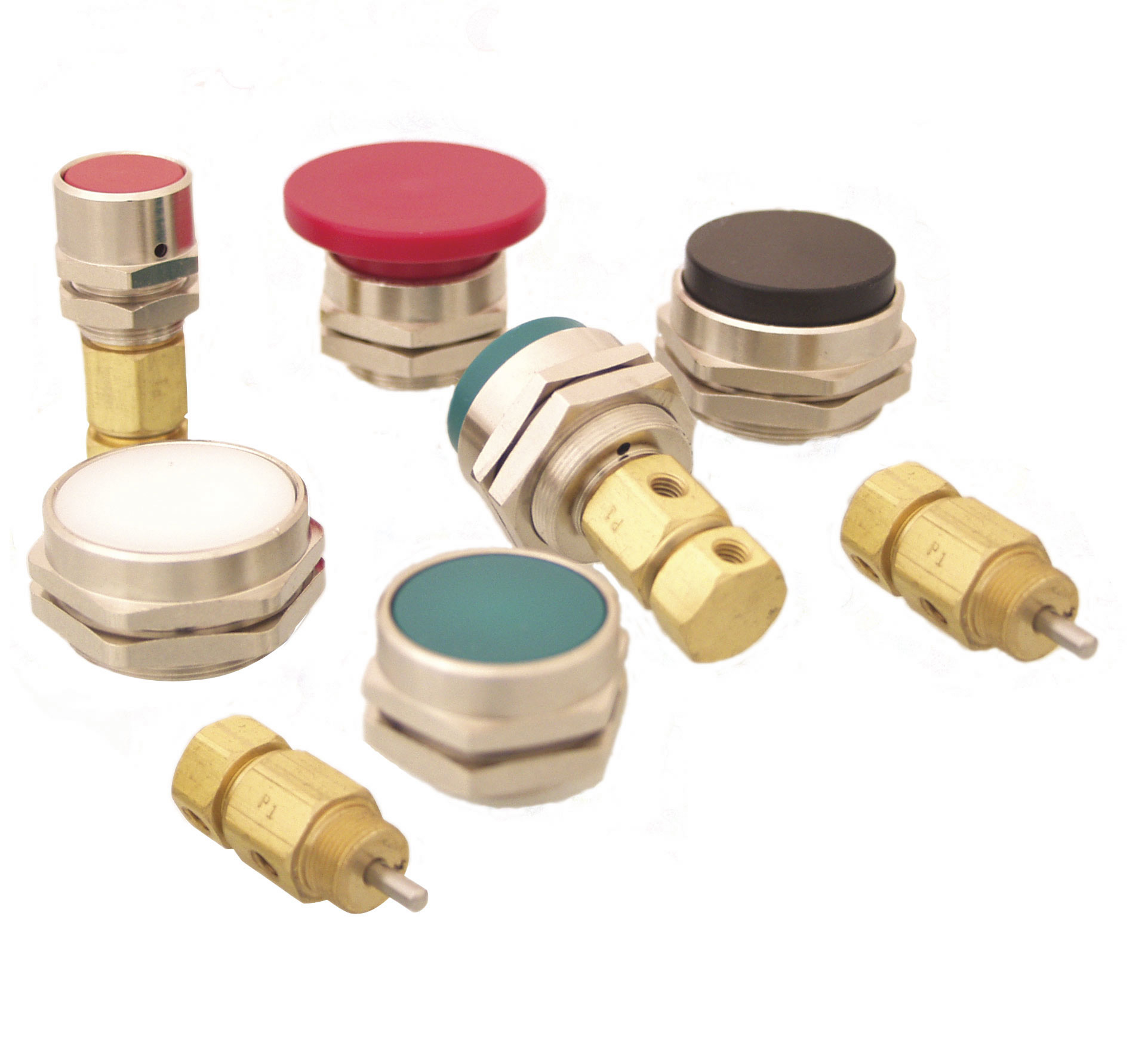

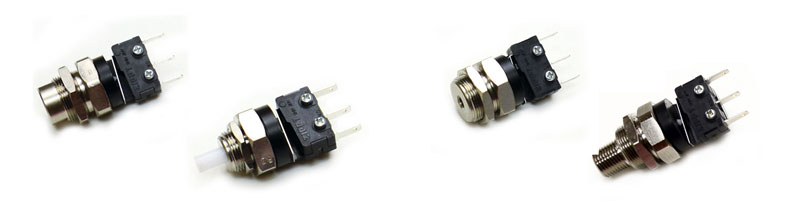

Sub-miniature electric switches utilize a single pole, double throw (SPDT) electrical switch, certified UL and CSA. Mechanically-operated models are also available which may be used with any Clippard air pilot or push-button actuator. The electrical switch is actuated by a lever arm which may be used as a manual override.
To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.
Need help? Contact Us >
| Part No. |
Product Description
1-26
of 26
|
|---|---|
| SAS-1A1-06 | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 6 psig, #10-32 Port |
| SAS-1A1-06-F | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 6 psig, 1/8” NPT Port |
| SAS-1A1-06-P | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 6 psig, 1/8” NPT Port |
| SAS-1A1-20 | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 20 psig, #10-32 Port |
| SAS-1A1-20-F | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 20 psig, 1/8” NPT Port |
| SAS-1A1-20-P | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 20 psig, 1/8” NPT Port |
| SAS-1A1-40 | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 40 psig, #10-32 Port |
| SAS-1A1-40-F | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 40 psig, 1/8” NPT Port |
| SAS-1A1-40-P | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 40 psig, 1/8” NPT Port |
| SAS-1A1-65 | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 65 psig, #10-32 Port |
| SAS-1A1-65-F | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 65 psig, 1/8” NPT Port |
| SAS-1A1-65-P | Sub-Miniature Air Switch, 5 Amp, QC Terminals, 65 psig, 1/8” NPT Port |
| SAS-1A1-MN | Sub-Miniature Air Switch, 5 Amp, QC Terminals, Manual |
| SAS-1X0-06 | Sub-Miniature Air Switch (less Switch), 6 psig, #10-32 Port |
| SAS-1X0-06-F | Sub-Miniature Air Switch (less Switch), 6 psig, 1/8” NPT Port |
| SAS-1X0-06-P | Sub-Miniature Air Switch (less Switch), 6 psig, 1/8” NPT Port |
| SAS-1X0-20 | Sub-Miniature Air Switch (less Switch), 20 psig, #10-32 Port |
| SAS-1X0-20-F | Sub-Miniature Air Switch (less Switch), 20 psig, 1/8” NPT Port |
| SAS-1X0-20-P | Sub-Miniature Air Switch (less Switch), 20 psig, 1/8” NPT Port |
| SAS-1X0-40 | Sub-Miniature Air Switch (less Switch), 40 psig, #10-32 Port |
| SAS-1X0-40-F | Sub-Miniature Air Switch (less Switch), 40 psig, 1/8” NPT Port |
| SAS-1X0-40-P | Sub-Miniature Air Switch (less Switch), 40 psig, 1/8” NPT Port |
| SAS-1X0-65 | Sub-Miniature Air Switch (less Switch), 65 psig, #10-32 Port |
| SAS-1X0-65-F | Sub-Miniature Air Switch (less Switch), 65 psig, 1/8” NPT Port |
| SAS-1X0-65-P | Sub-Miniature Air Switch (less Switch), 65 psig, 1/8” NPT Port |
| SAS-1X0-MN | Sub-Miniature Air Switch (less Switch), Manual |
/
/
