MAV-2P

More Views

MAV-2P

The MAV series are #10-32 ported valves that change their flow path when the stem is depressed or released. The 2-Way and 3-Way valves are offered in both Normally-Closed (not passing) or Normally-Open (passing) versions.
Estimated to ship within 2 to 3 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Miniature #10-32 threaded ports
  • 2-Way, 3-Way & 4-Way valves
  • Miniature size with high flow poppet or spool designs
  • Exceptionally low leakage rate on poppet design
  • Rotatable inlet available

    • Air Flow110 l/min @ 50 psig; 190 l/min @ 100 psig
    Function2-Way
    Included Item(s)Nut & Lockwashers
    Input PSI300 psig
    Material, BodyBrass, ENP Available
    Material, SealsNitrile Std., FKM & Krytox Optional
    Material, Spring & StemStainless Steel
    MediumAir, Water or Oil

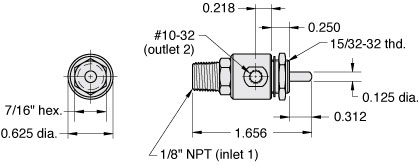

    Mount15/32-32 thread.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Port, Inlet1/8" NPT
    Port, Outlet#10-32
    PortingNormally-Closed
    Product Line BrochureMechanical Valves
    Stem Travel1/8"
    Stem Travel1/8"
    StyleStem
    UnitImperial
    Weight (lbs.)0.1000
