H9C-1S

More Views

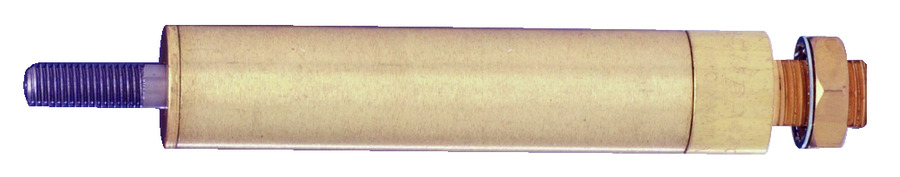

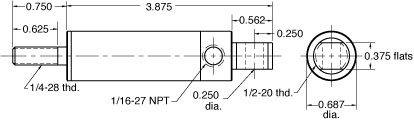

H9C-1S

Obsolete-9/16” Heavy Duty, Single Acting, Clevis Mnt, Spring Return, 1”
Clippard has divested our cylinder product lines to Compact Automation. Click here to learn more.

To continue ordering the same cylinders you have ordered in the past, please click here to locate your nearest Clippard distributor.
ActionSpring Return, Air Extend
Bore0.5625
Max PSI250 psig
MediumAir
MountClevis Mount
Ports1/16 NPT
RodRotating Rod
Rod Diameter0.25
Spring Force (extended)4 lb
Spring Force (retracted)2 lb
Stroke1.00
Temperature Range30 to 230°F
Weight (lbs.)0.3200
