FV-4D

More Views

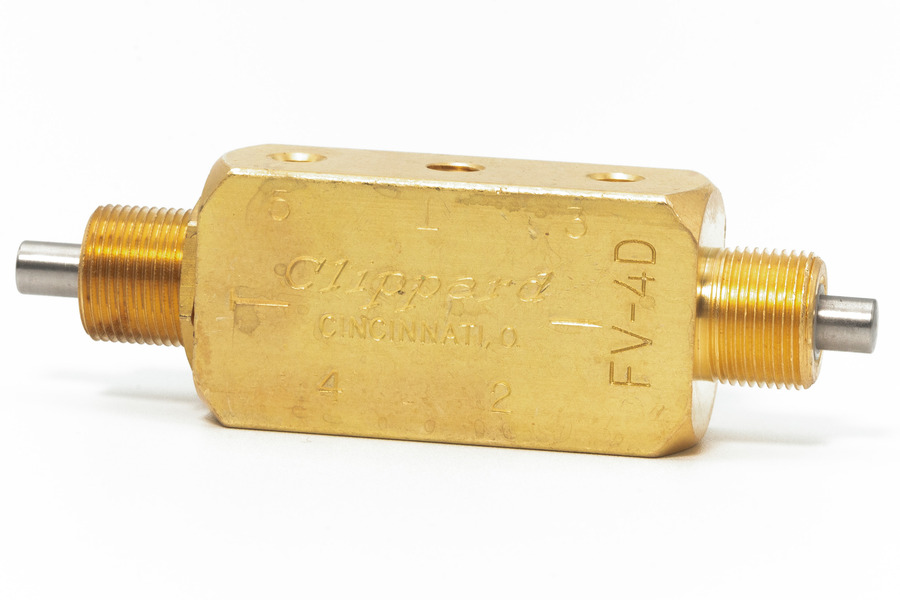

FV-4D

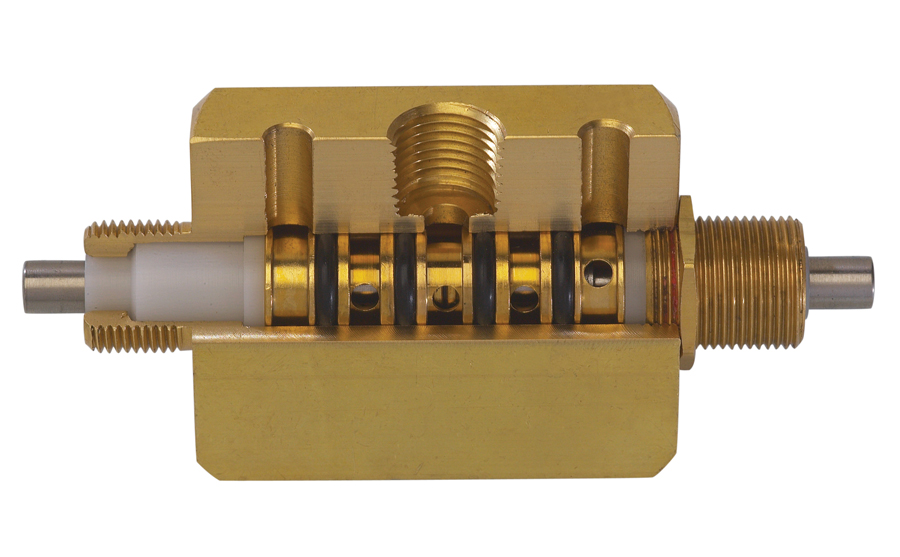

The FV series are #10-32 or 1/8" NPT spool valves which are fully-ported, which means that all ports are usable and can handle pressure or vacuum or both. This series offers Normally-Open, Normally-Closed and Selector/Diverter functions.
Estimated to ship within 2 to 3 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • 3-Way & 4-Way Configurations
  • Designed for use with Clippard manual air pilot, electrical or mechanical actuators

    • Actuation2-Position

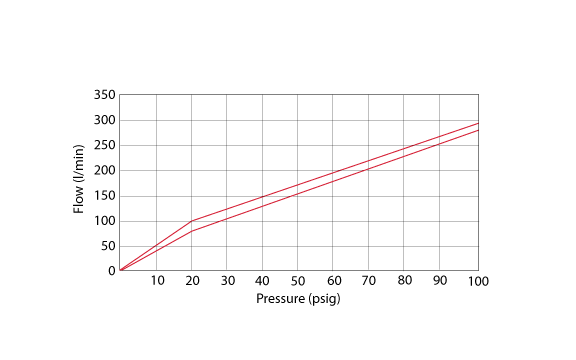

    Flow170 l/min @ 50 psig; 280 l/min @ 100 psig
    Force for Full Stem Travel1.5 pounds nominal
    Function4-Way
    Included Item(s)Nuts & Lockwashers
    Input PSI150 psig max.
    Material, BodyBrass
    Material, SealsNitrile
    Material, Spring & StemStainless Steel
    Max PSI150 psig
    MediumAir, Oil or Water

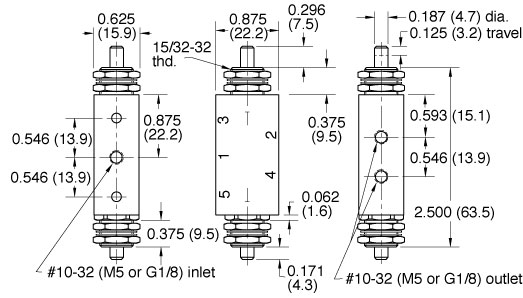

    Mount15/32-32 thread
    Port(s)#10-32
    Stem Travel1/8 inches
    Stem Travel1/8"
    UnitImperial
    Weight (lbs.)0.3400
