11752-3-BLK

More Views

11752-3-BLK

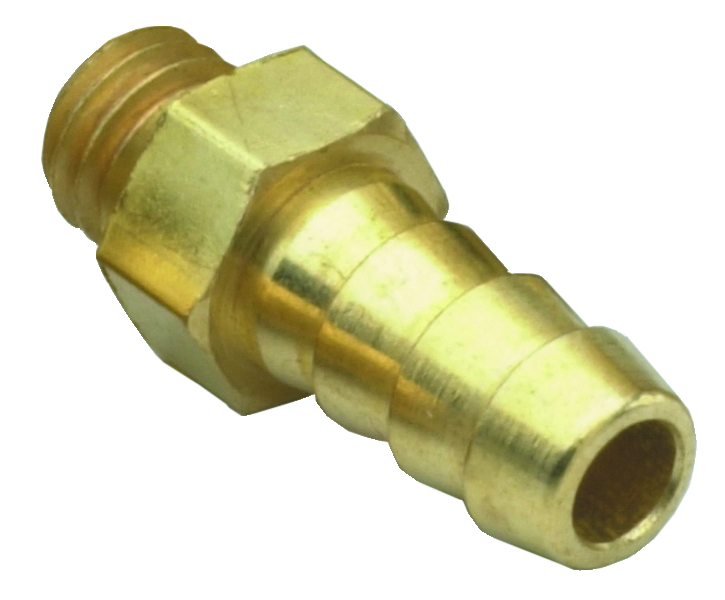

Minimatic barb fittings provide a flexile, easy alternative to ferrule and push-to-connect/push-quick fittings. Designed for use with urethane hose, barb fittings will provide a leak-free connection that will hold well behond the working pressure of the hose without the need for additional clamps.
Estimated to ship within 2 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Bulk pricing.
Must be purchased in quantities greater than 250
Contact your local Clippard Distributor for volume discounts.

  • Miniature size provides low profile
  • Electroless Nickel-Plated Brass
  • Available with many hose barb sizes
  • Holds to the burst pressure of polyurethane hose

    • AccessoriesIf ordering bulk, seals must be ordered separately: Nitrile: 11761-2, FKM: 11761-8, Nylon 11761-4
    Bottom Port#10-32 Male Thread
    Clippard Tubing1/16" I.D. Tubing
    Fitting MaterialBrass
    Hex Size1/4" Hex
    Hose Barb1/8" ID
    PackagingBulk-250 pc., Seals Ord. Sep.
    Product Line BrochureMechanical Valves
    SealGasket
    Seal MaterialNitrile
    SealsNitrile Gasket Ordered Separately #11761-2
    Top Port1/8"ID Hose Multi Barb for Soft Tubing
    Weight (lbs.)0.0050
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Minimatic® barb fittings provide a flexible, easy alternative to ferrule and push-to-connect design fittings for a leak free connection. Designed for use with Clippard's Polyurethane hose
